4-40
EMP-TW1000
SEIKO EPSON Revision:A

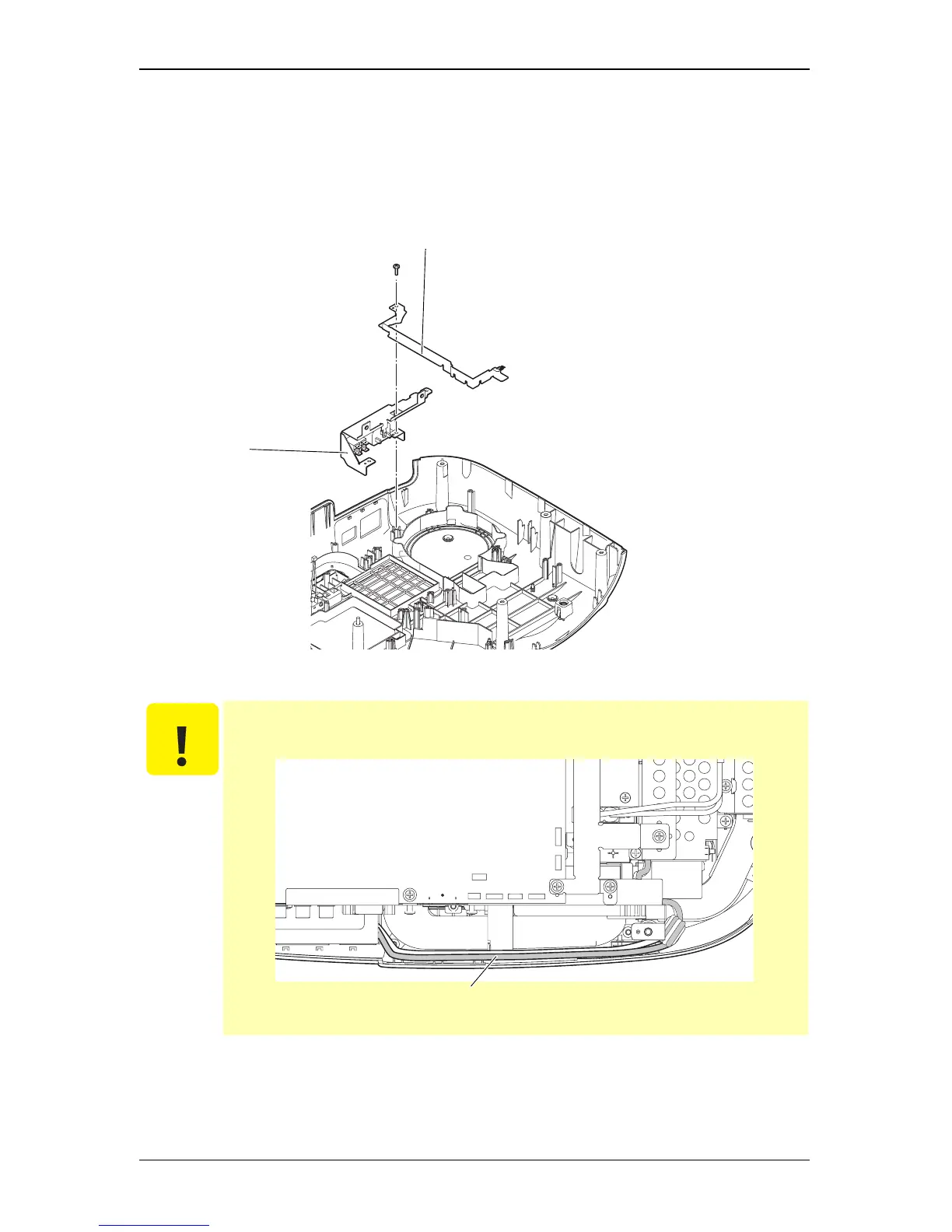

4.2.17 Removing the AC Cable, and Lensbase Ground Plate; A
1. Remove the screw (C.B.P-TITE SCREW, 3x10, F/ZB-3C) that secures the AC Cable, and
remove the AC Cable.
2. Remove the Lensbase Ground Plate; A from the AC Cable.
Figure 4-42.
C A U T I O N
 Route the AC cable as shown in Figure 4-43, putting the cable into the Lower
Case as much as possible.
Figure 4-43.
Plate_Ground_Lensbase; A
AC Cable
AC cable
