4-38
EMP-TW1000
SEIKO EPSON Revision:A
4.2.15 Removing the Light Valve Duct, PBS Duct Sheet, Light Valve Intake Duct,
Light Valve Sheet, Intake Fan, and Light Valve Cushion
1. Remove the two screws (C.B.P-TITE SCREW, 3x10, F/ZB-3C) that secure the Light Valve
Duct, and remove the Light Valve Duct.
2. Remove the PBS Duct Sheet from the Light Valve Duct.
3. Remove the four screws (C.B.P-TITE SCREW, 3x10, F/ZB-3C) that secure the Light Valve
Intake Duct, and remove the Light Valve Intake Duct.
4. Remove the Light Valve Sheet from the Light Valve Intake Duct.
5. Remove the Inteke Fan.
6. Remove the Light Valve Cushon from the Intake Fan and Lower Case.

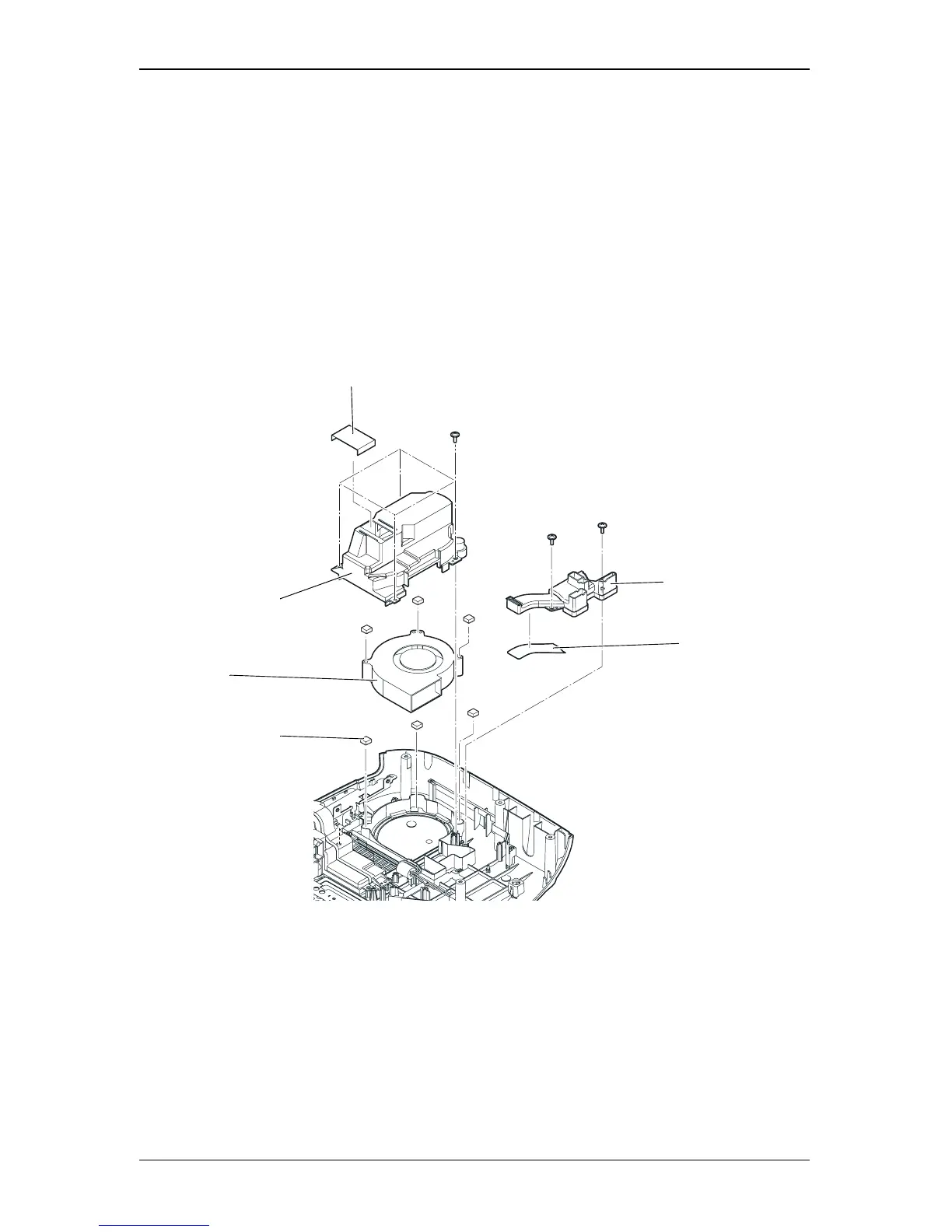

Figure 4-39.
Sheet, Duct, Light Valve
Sheet, Duct, PBS
Fan, Intake
Duct, Light Valve
Duct, Intake, Light Valve
Cushion, Light Valve
