2-13
EMP-TW1000
SEIKO EPSON Revision:A

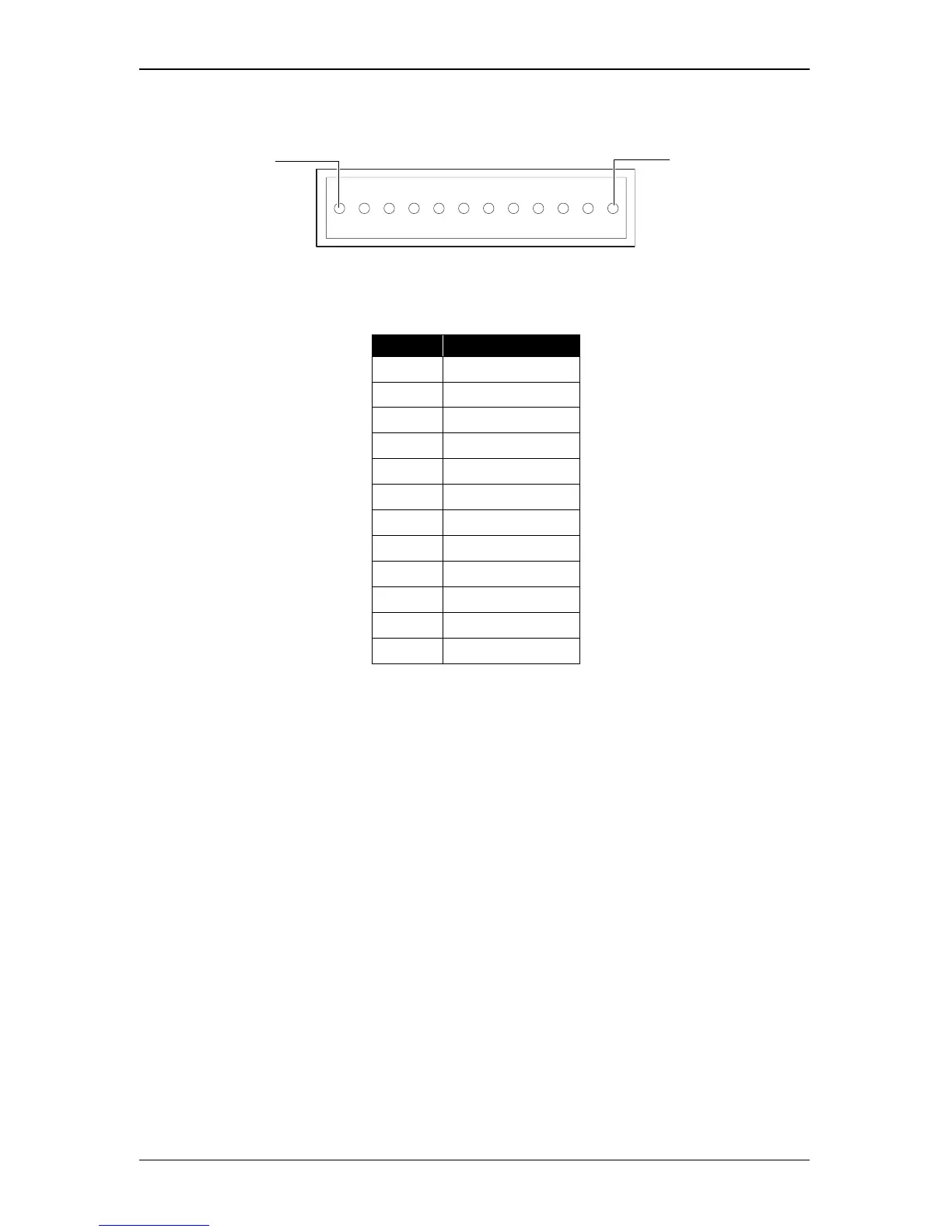

2.5.3 Connector CN4000 Pin Layout
Figure 2-14.
Power Supply Connector (connected to CN4000 on the MA board) Pinout Definition
Pin No. Signal name
1 PFCON
2 +5 V_T
3 GND
4 +5 V_T
5 +5 V_T
6-
7 GND
8 +13 V
9 GND
10 +18 V
11 GND
12 (Not in use)
12
1
