4.2.6 Removing the SW Board Assy., Cable SW;Au, and SW Button
1. Remove the four screws (C.C.P-TITE SCREW 3x8, F/ZN-3C) that secure the SW Board
Assy., and remove the screw (C.C.P-TITE SCREW 3x8, F/ZN-3C) that secures the SW
Button.
2. Remove the SW Board Assy. and SW Button.
3. Pull out the Cable SW;Au from the SW Board Assy.

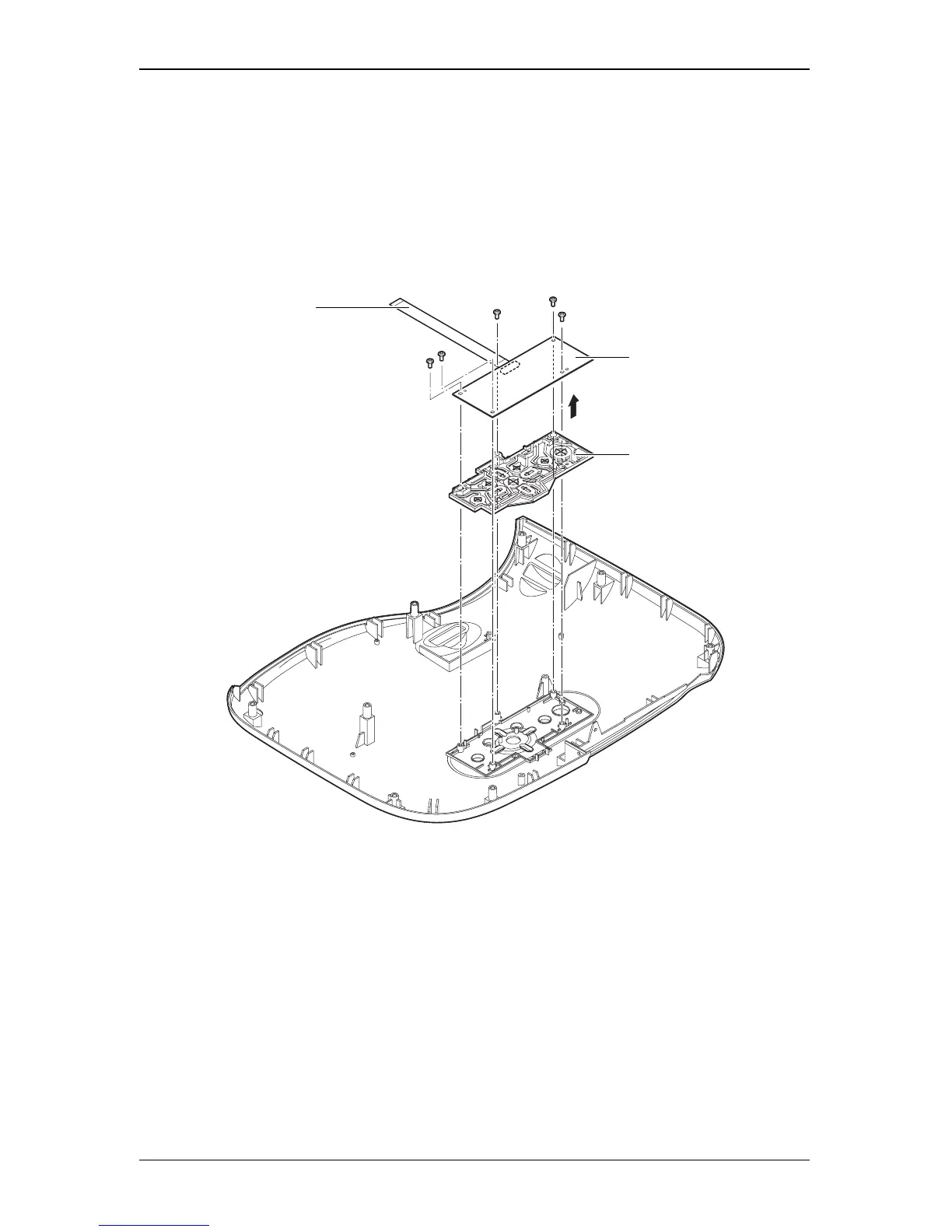

Figure 4-9.
PRINTED CIRCUIT BOARD
ASSEMBLY; SW_R1
Cable SW; Au
Button, SW
