4-24
EMP-TW1000
SEIKO EPSON Revision:A
4.2.9 Removing the IF Case, IF Label; A, IF Shade Sheet, and IF Shade
Cushion
1. Remove the two screws (C.B.SCREW, 3x8, F/ZI) that secure the IF Case, and remove the
IF Case from the MA-IF Board Assy.
2. Remove the IF Label; A from the IF Case.
3. Remove the IF Shade Sheet from the MA-IF Board Assy.
4. Remove the IF Shade Cushion from the MA-IF Board Assy.

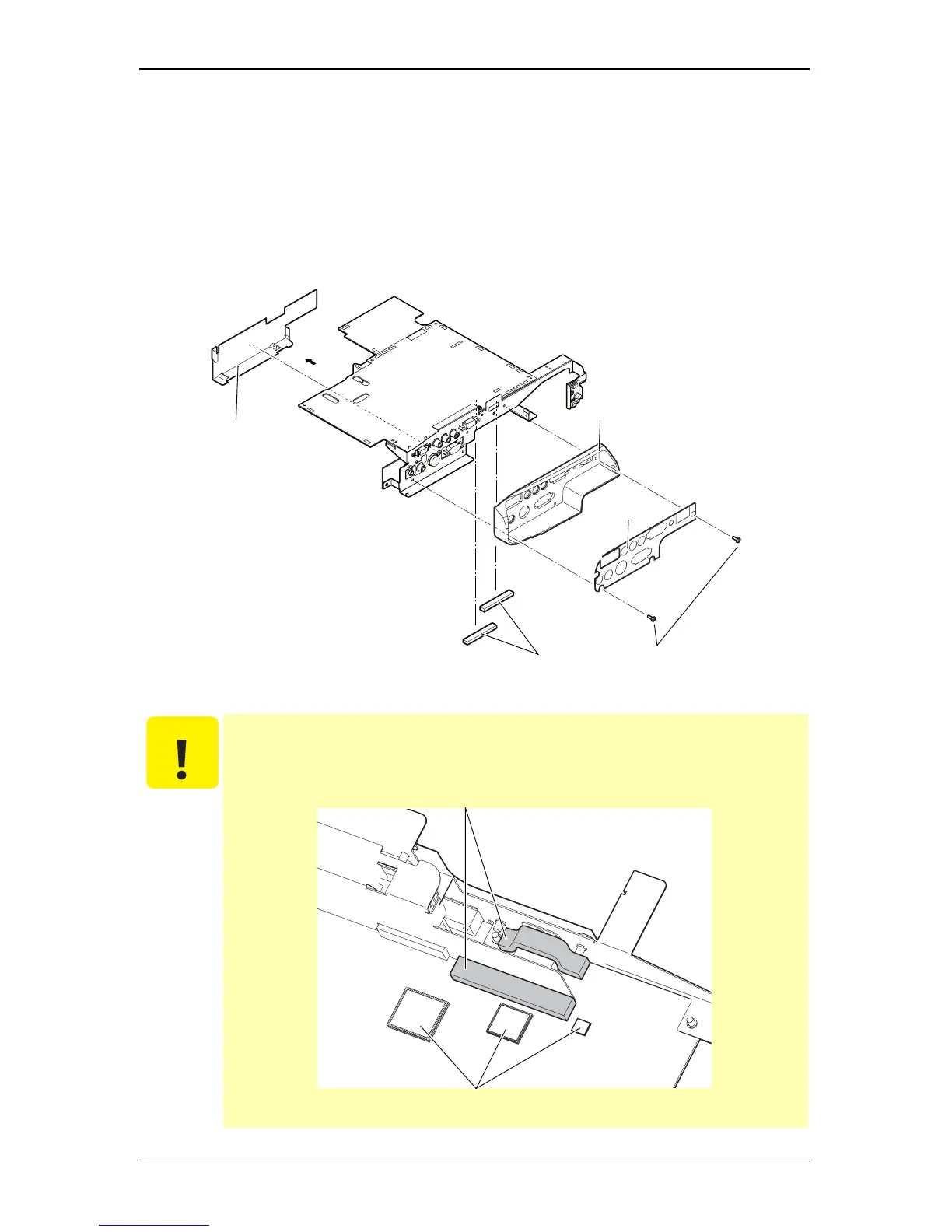

Figure 4-20.
C A U T I O N
3). Attach the IF Shade Cushions on the positions shown in Figure 4-21. Make
sure that the IF Shade Cushion is not overlapping the IC (Integrated
Circuit).
Figure 4-21.
Case IF
C.B.SCREW, 3x8, F/ZI
Sheet, Shade, IF
Label IF; A
Cushion, shade, IF
IC
IF Shade Cushions
