Epson EMP-TW1000 - REMOVING IF CASE, IF LABEL, IF SHADE SHEET, AND IF SHADE CUSHION; REMOVING IF CASE, IF LABEL, IF SHADE SHEET, AND IF SHADE CUSHION (CONTINUED)

4-23
EMP-TW1000
SEIKO EPSON Revision:A
4. Remove the screw (C.C.SCREW, 3x6, F/ZN-3C) that secure the IF Panel and the screw that
secures the IF Ground Plate, and remove the two screws (C.B.SCREW, 3x8, F/NI) that
secure the IF Case to the Lower Case.
5. Remove the two screws (C.C.SCREW, 3x6, F/ZN-3C) that secure the MA-IF Board Assy.,
and remove the MA-IF Board Assy.

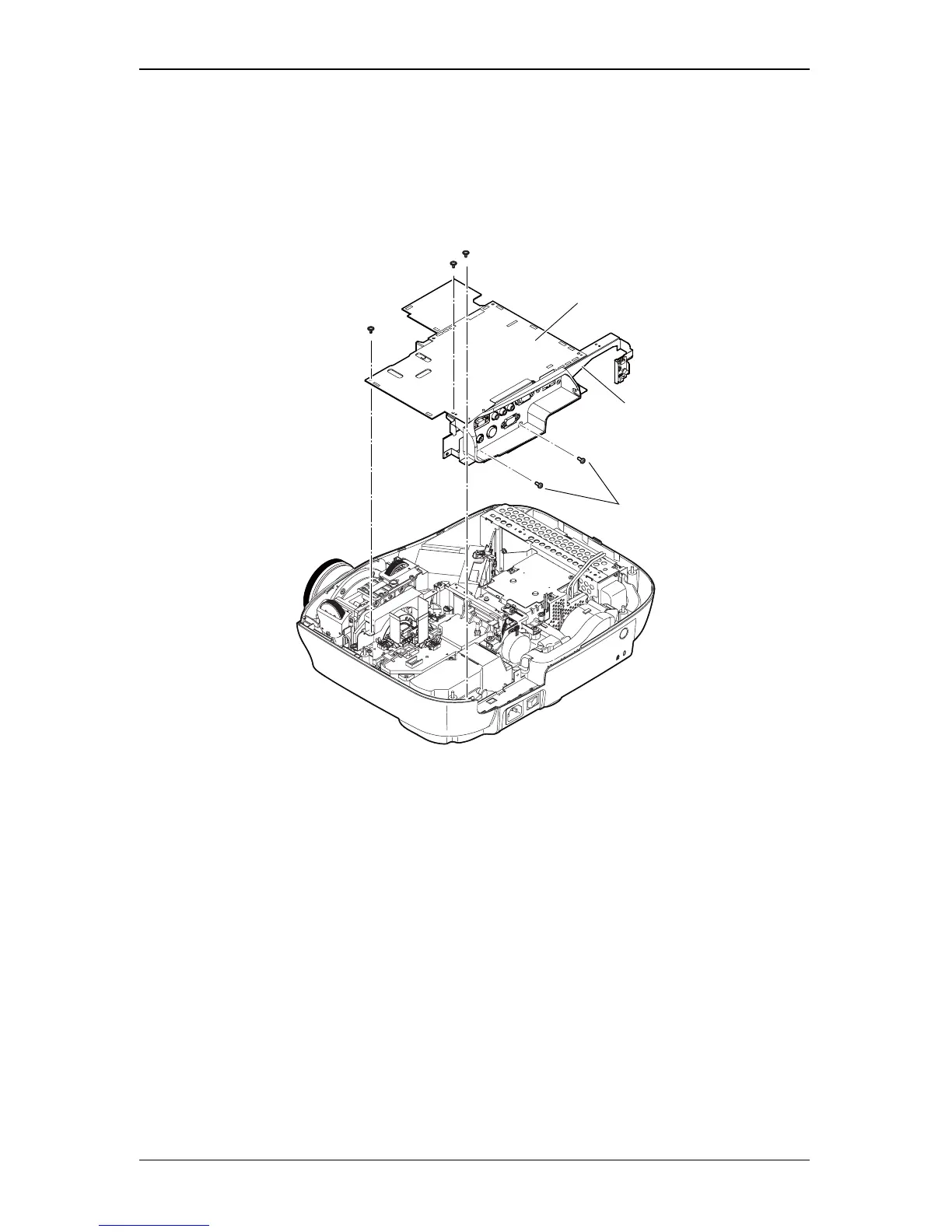

Figure 4-19.
MA-IF Board Assy.
Panel IF
C.B.SCREW, 3x8, F/NI
