Epson EMP-TW1000 User Manual

1-11
EMP-TW1000
SEIKO EPSON Revision:A

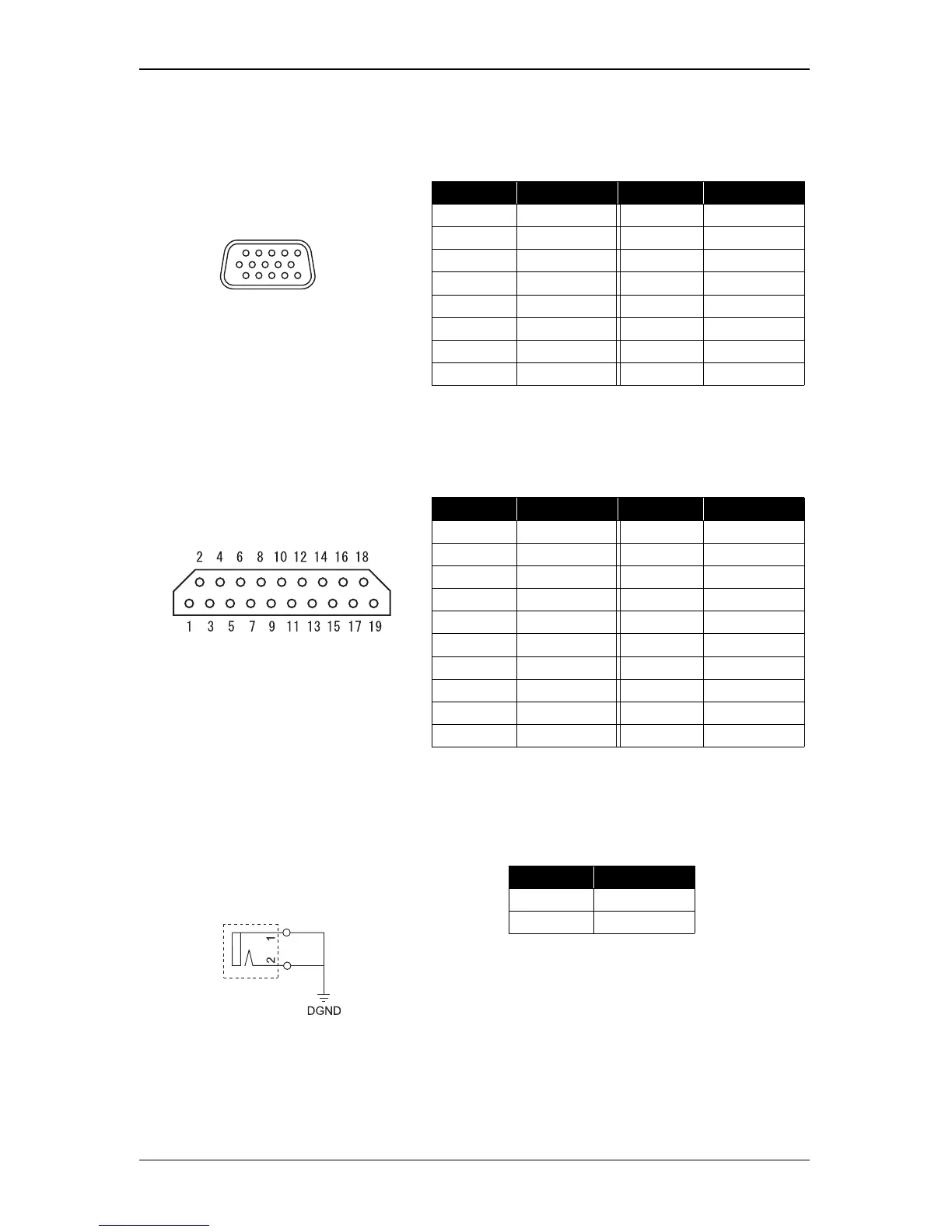

1.4.3 PC
 Mini D-sub, 15pin
1.4.4 HDMI
 19 pin
1.4.5 Video (CVBS) Interface
 RCA pin jack
Pin No. Signal Name Pin No. Signal Name
1R9(Not in use)
2 G 10 GND
3 B 11 GND
4 GND 12 SDA
5 GND 13 H Sync
6 GND 14 V Sync
7 GND 15 SCL
8 GND
CN100
7513S-15G2-08
15
10
5
11
6
1
CN300
DC1R019NBA
Pin No. Pin Name Pin No. Pin Name
1 Rx2+ 11 GND
2 GND 12 RxC-
3 Rx2- 13 (Not in use)
4 Rx1+ 14 (Not in use)
5 GND 15 SCL
6 Rx1- 16 SDA
7 Rx0+ 17 GND
8 GND 18 +5V
9 Rx0- 19 HTPLG
10 RxC+
J3000
HSP-251VY
Pin No. Signal Name
1GND
2CVBS
