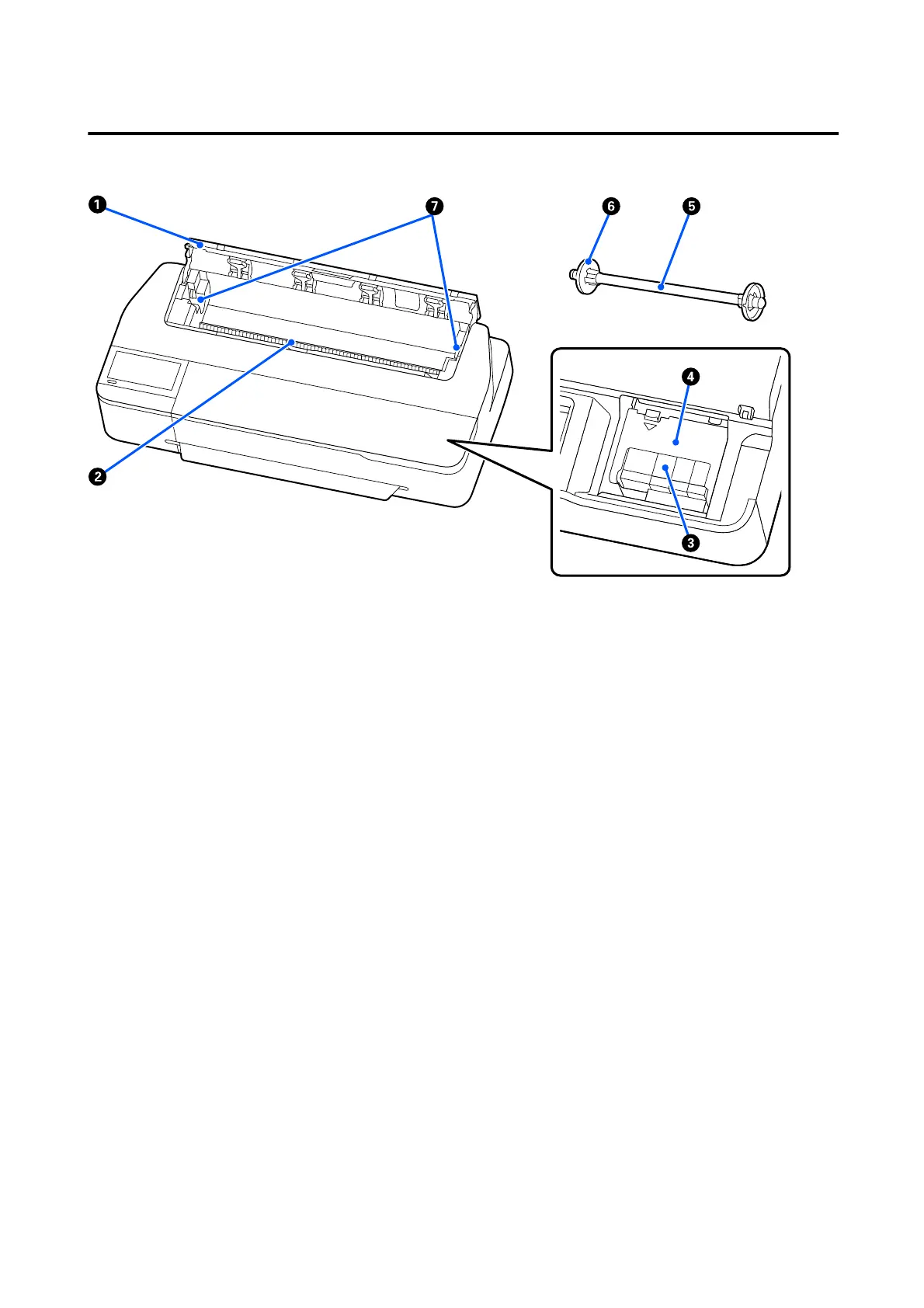

Inside
A Roll paper cover
is cover protects the loaded roll paper and prevents dust from entering inside the printer. Except when load‐
ing or removing roll paper, it should be closed when using the printer.
U “Loading Roll Paper” on page 28
B Paper slot
is is the slot through which roll paper or single sheets of cut sheet are fed during printing. Feed single sheets
one at a time.
C Ink cartridges
Install cartridges into all slots.
U “Replacing Ink Cartridges” on page 135
D Cartridge cover
Open when replacing ink cartridges.
E Spindle
When loading roll paper into the printer, insert this through the roll paper.
F Movable
ange
(transparent)
is xes the roll paper placed on the spindle. Attach or detach it when placing or removing roll paper on/from
the spindle.
SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series User's Guide
Introduction
9
