The StatusMonitor provides an error message when a printer
error occurs while printing. You can choose how error
information will be displayed using the Configuration setting
dialog box. Click the
Configuration
button while the

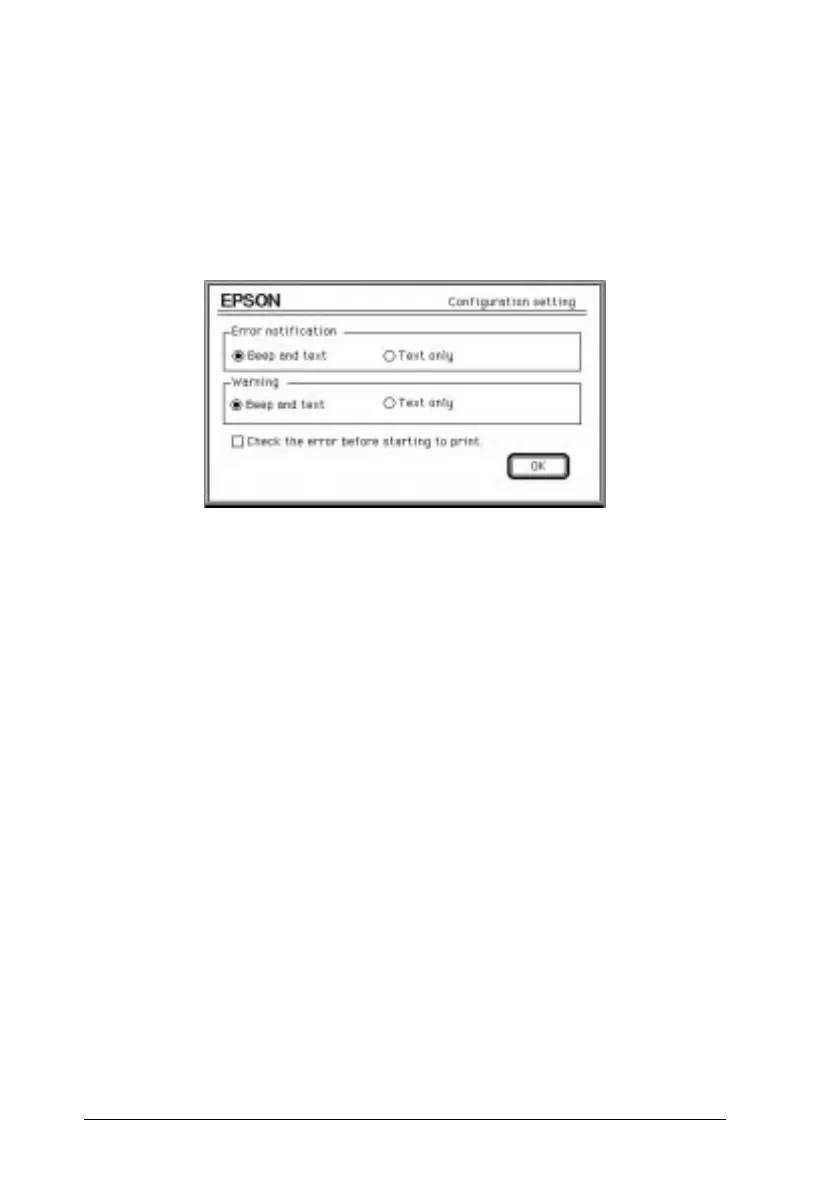

StatusMonitor dialog box is open. The following dialog box
appears:
Choose the method and click
OK
.
Nozzle Check
Checks whether or not the print head nozzles need to be
cleaned. Click the
Nozzle Check
button to print the nozzle
check pattern. If the print head needs cleaning, you can directly
enter the Head Cleaning utility from this utility. After you
clean the print head, you can return to the Nozzle Check utility
directly from the Head Cleaning utility.
For detailed information on print head cleaning, see Chapter 8,
“Troubleshooting.”
status02
L
Fiji2 Ref. Guide
Rev.b
A5 size Chapter 5
97/05/20 DR, pass 0
5-22
Using the Printer Software for Macintosh
