EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

TROUBLESHOOTING Troubleshooting 39

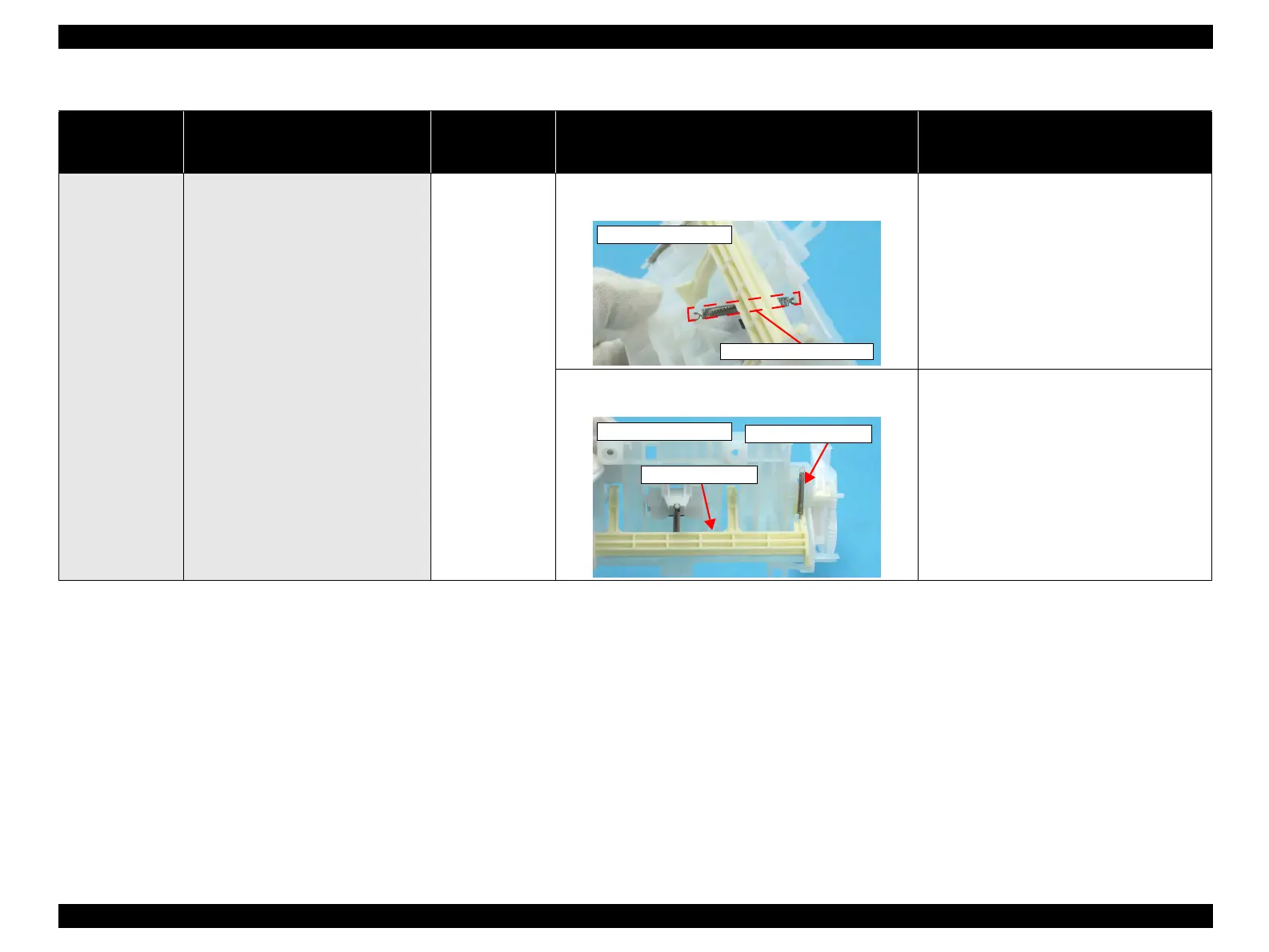

Table 3-8. Check point for double feed error according to each phenomenon

Occurrence

timing

CR position

Detailed phenomenon

Defective

unit/part name

Check point Remedy

• Operation

•–

After both surfaces were printed, the

paper was ejected but an error is

displayed.

ASF Unit

1. Check if the Extension Spring Retard operates correctly

in the paper loading sequence.

1. Set the Extension Spring Retard between the

Retard Roller Unit and the ASF Frame.

2. Check if the Paper Back Lever operates correctly in the

paper loading sequence.

2. Set the Torsion Spring 6.45 between the ASF

Frame and the Paper Back Lever.

Extension Spring Retard

Back side of ASF Unit

Paper Back Lever

Torsion Spring 6.45

Back side of ASF Unit
