Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Disassembly & Assembly
Disassembly Procedures
114

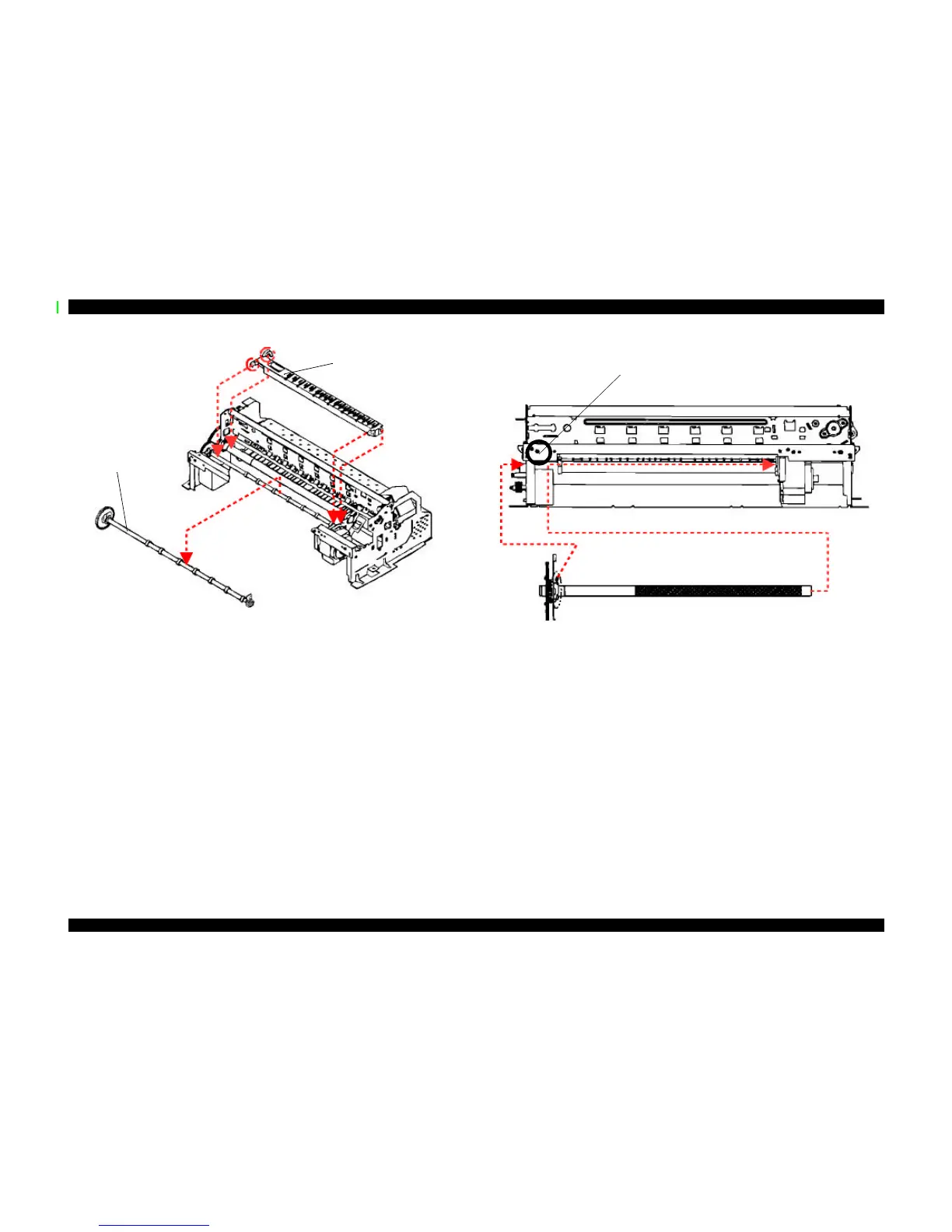

Figure 4-17. Removing the Paper Eject Roller Assembly
Figure 4-18. Removing the PF Roller Assembly
Front Paper Guide; B
Eject Paper
Roller Assembly
Align the protrusion in the PF roller assembly with the
hole in the frame for holding the shaft.
PF Roller Assembly
