Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Troubleshooting
Troubleshooting the Scanner
71

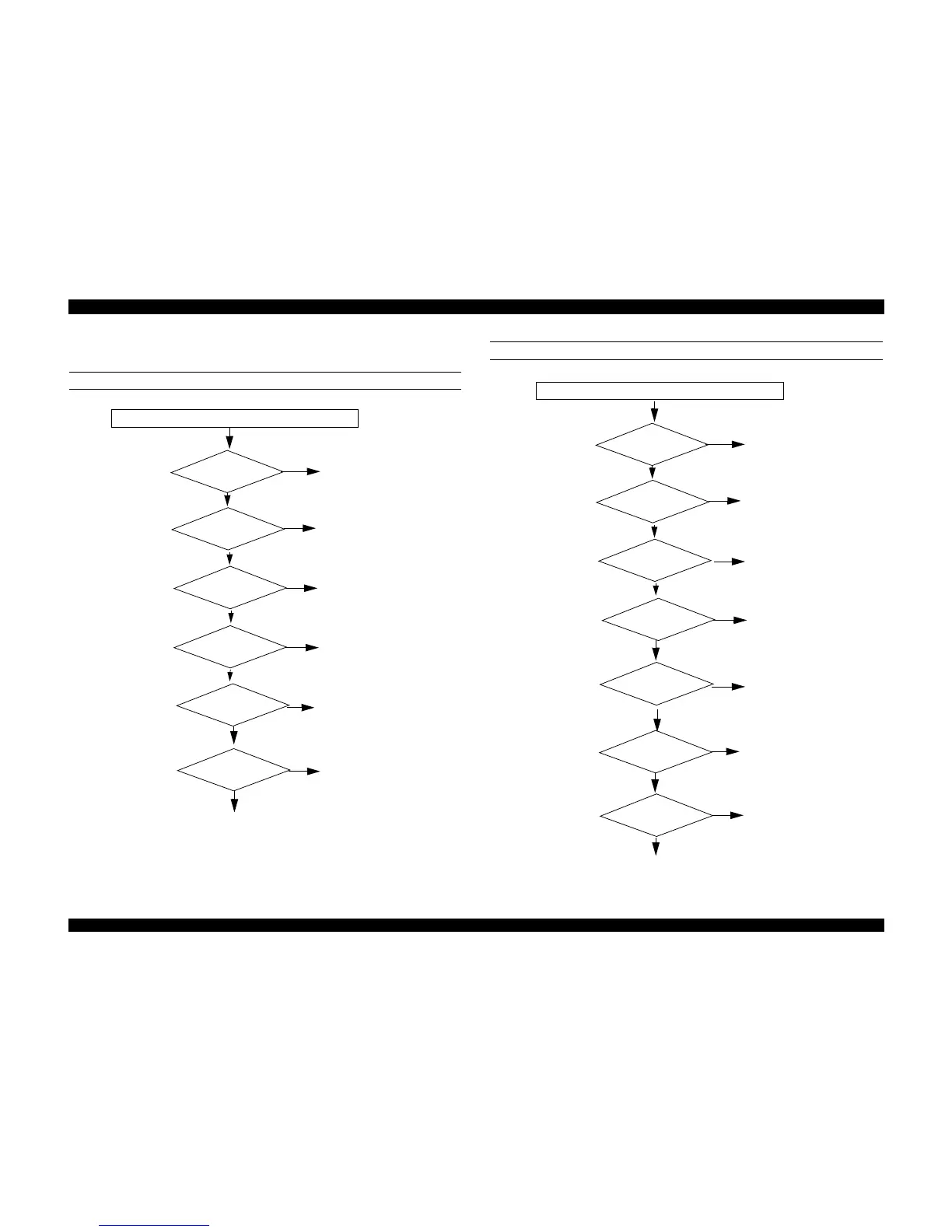

3.3.1 Troubleshooting Flowcharts
SCANNING OPERATION ERRORS
ADF OPERATION ERRORS
Start
Does scanner
function?
Can you see
the image?
Does it shake a
lot?
Is the start-scan
position correct?
Is the image
clear?
Is there any
abnormal
noise?
Refer to Table 3.1.1
Refer to Table 3-6
Refer to Table 3-12
Refer to Table 3-7
Refer to Table 3-8
Refer to Table 3-12
YES
NO
YES
YES
YES
NO
NO
YES
NO
YES
YES
NO
END
NO
(Scanning Operation)
Start
Do paper jams
occur frequently?
Multiple sheets
feeding together?
Does paper
skew?
Is the image
clear?
Is there any
abnormal
noise?
Refer to Table 3-9
Refer to Table 3-10
Refer to Table 3-11
Refer to Table 3-7
Refer to Table 3-8
Refer to Table 3-12
YES
YES
NO
NO
YES
NO
YES
NO
YES
YES
NO
END
YES
(ADF mode)
Refer to Table 3-12
YES
NO
NO
Does it shake a
lot?
Is the start-scan
position correct?
