Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Disassembly & Assembly
Overview
86

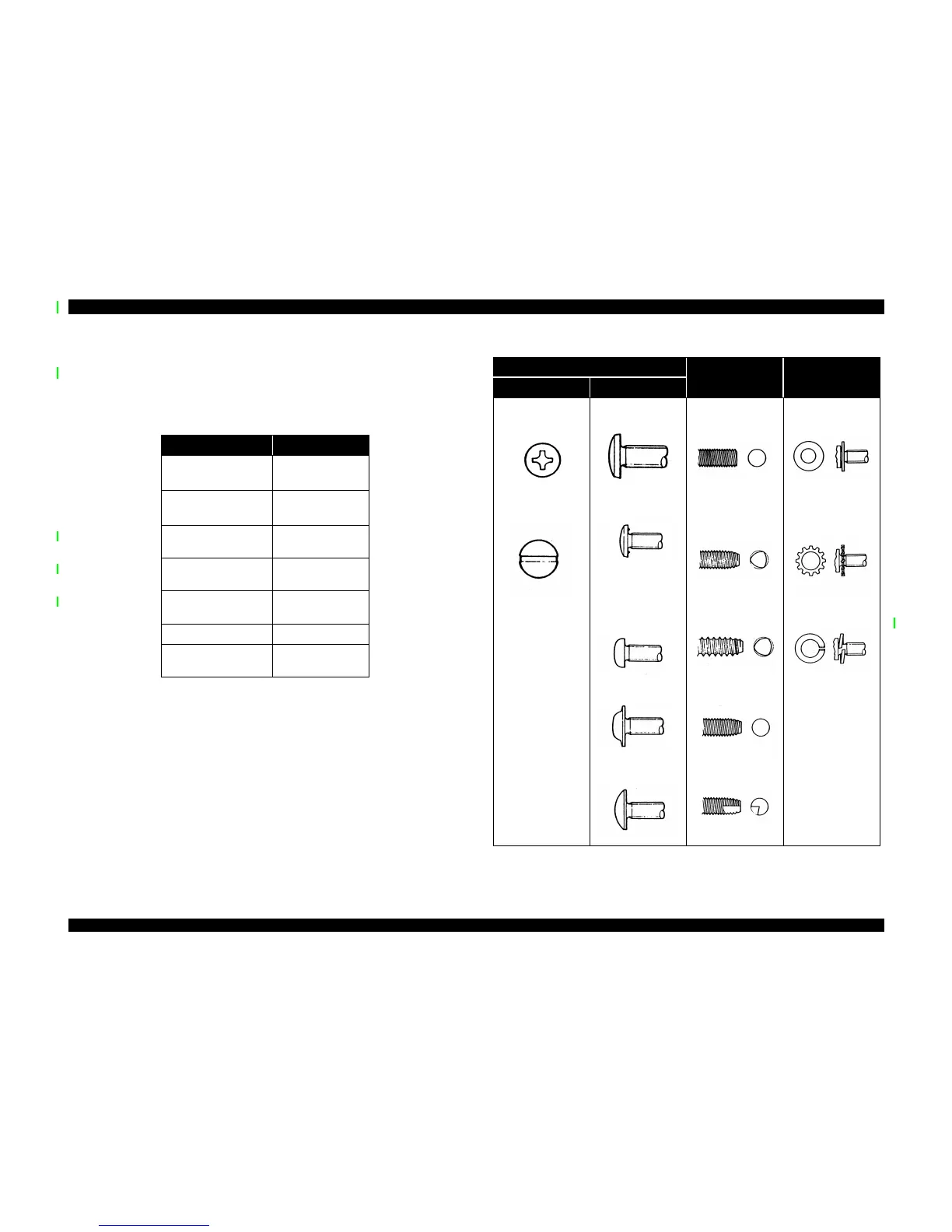

4.1.3 Screw Numbering System and Specifications
Table 4-2 lists the screws used in the EPSON Stylus Scan 2000 and Table 4-3 provides
detailed screw specifications. During assembly and disassembly, make sure that the
specified types of screws are used in the proper locations.
Table 4-2. Screw Numbering System
Table 4-3. Screw Types and Abbreviations
Name Size
+Bind, S-tight
(CBS)
3X6
+Bind, S-tight
(CBS)
3X10
+Bind, P-tight
(CBP)
3X6
+Bind, P-tight
(CBP)
3X10
+Bind, P-tight
(CBP)
3X8
+Pan head (CP) 3X4
+Bind, S-tight, Sems
R2(CBS Sems)
3X6
Head
Body
Washer
(assembled)
Top Side
1. Cross-recessed
head
1. Bind
1. Normal
1. Plain washer
2. Slotted head
(with Notch)
2. S-tight
2. Outside toothed
lock washer
2. Pan
3. P-tight
3. Spring washer
3. Cup
4. Tapping
4. Truss
