Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Troubleshooting
Unit Level Troubleshooting
65
3.1.4 Printer does not feed paper correctly

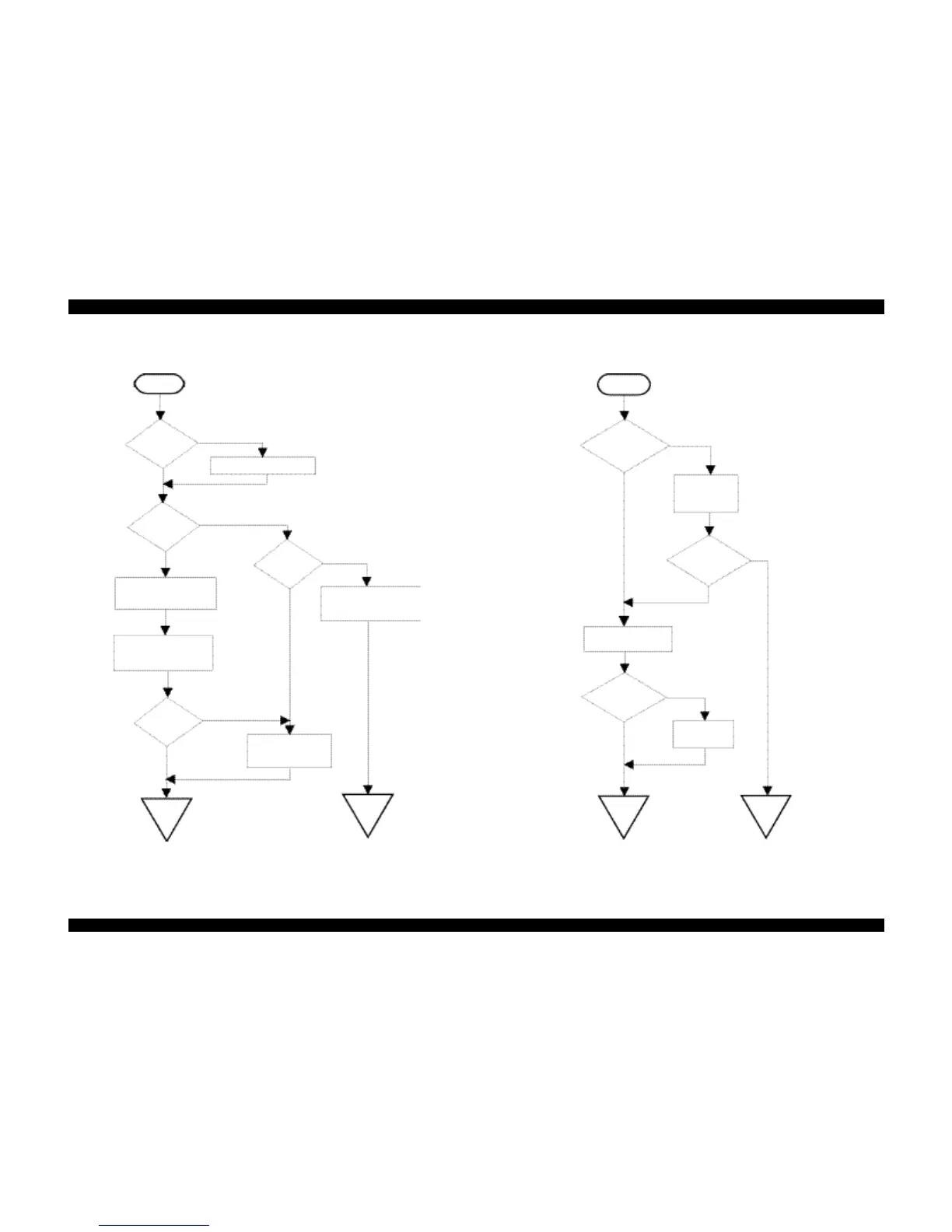

Flowchart 3-4.
3.1.5 Control panel operation is abnormal
Flowchart 3-5.
START
Paper
loaded correctly
in ASF?
Set the paper correctly.
PF roller
and platen
rotate?
Is the
PF motor
running?
NO
NO
NO
YES
Check the PF motor.
No problem = replace
the MAIN board.
YES
Remove any
obstruction in the paper
path if there is any.
Clean the roller of
paper path.
Is the
problem
solved?
Refer to Table 3-3.
YES
NO
END
END
Control
panel connected
correctly?
START
Connect the
control panel
correctly.
NO
NO
NO
YES
YES
YES
END
END
Is the
problem
solved?
Replace the
control panel.
Replace the
MAIN Board.
Control
panel connected
correctly?
