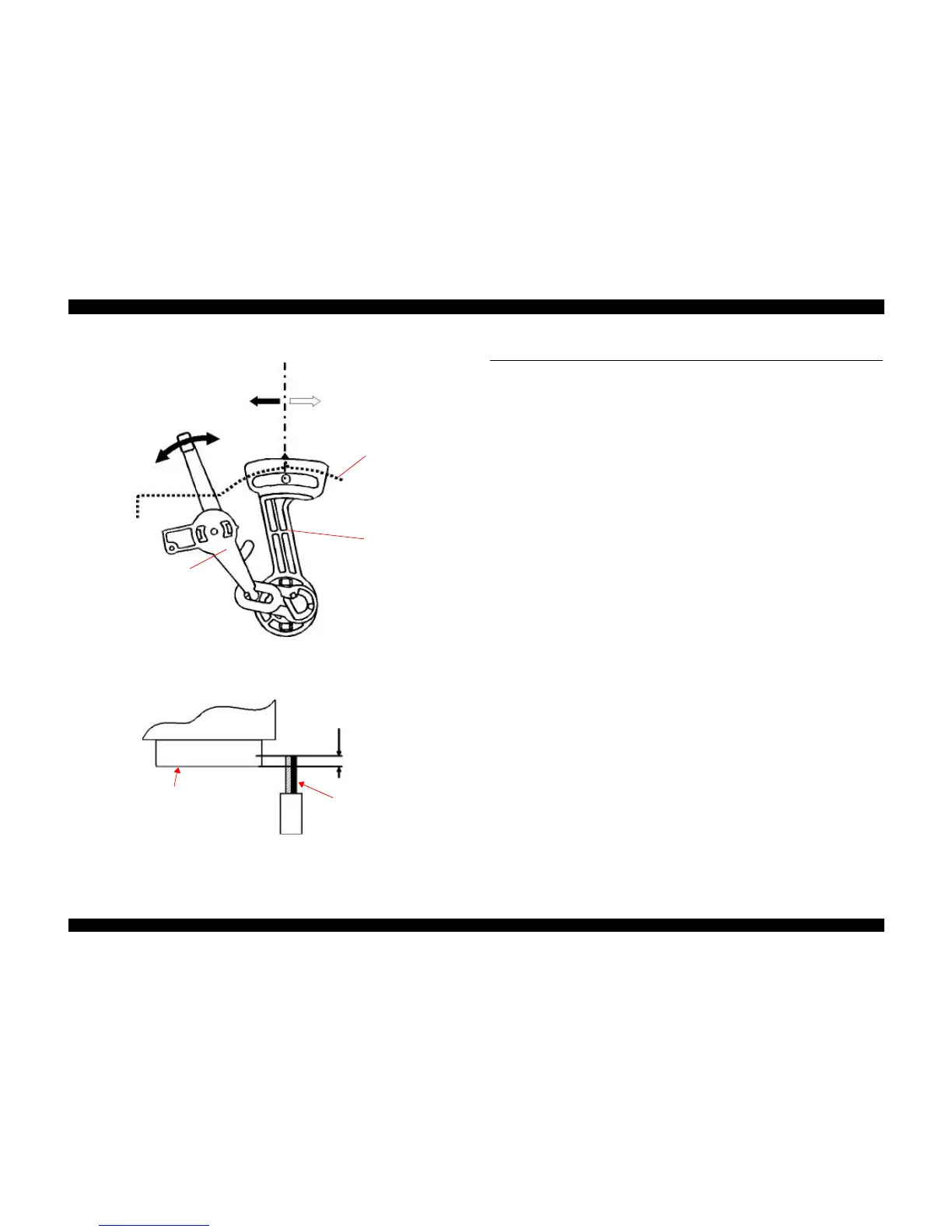

Figure 5-2. Parallelism Adjustment
Figure 5-3. Overlap of Head Surface and Cleaner Blade
5.3 Using the Service-Adjustment Program
For the Stylus Scan, instead of an exclusive service-adjustment program, you need to use
the production program when performing certain service operations.
This program is necessary to eliminate any malfunction or fluctuation between individual
printer mechanisms and printer parts. Therefore, any time you replace the printer
mechanism, printhead, or main board you need to enter the correct information in the main
board using this production program.
5.3.1 Installing the program
1. Insert the floppy disk in the "A" drive and open the "A" drive folder from My
Computer or the Explorer.
2. Click the program icon for the Adjustment program.
NOTE: The program name varies according to model and program version. At
the time of the publication, SS 2000 = N90B01W and SS2500 =
P00B01W
3. Select an installation folder and click OK.
5.3.2 Openning the Start-up menu
1. Connect the printer and PC and turn on the printer.
2. From the Start menu, select Programs>Program for Production>P00B01W
The following screen appears.
Position mark
Forward =
Gap widens
Backward =
Gap narrows
Side frame
+ side
- side
PG lever
Right parallelism
adjustment bushing
Printhead nozzle
surface
Cleaner blade
Overlap =
0.5mm or
more
