Epson Stylus Scan 2000 Service Manual

EPSON Stylus Scan 2000
Revision A
Disassembly & Assembly
Disassembly Procedures
95

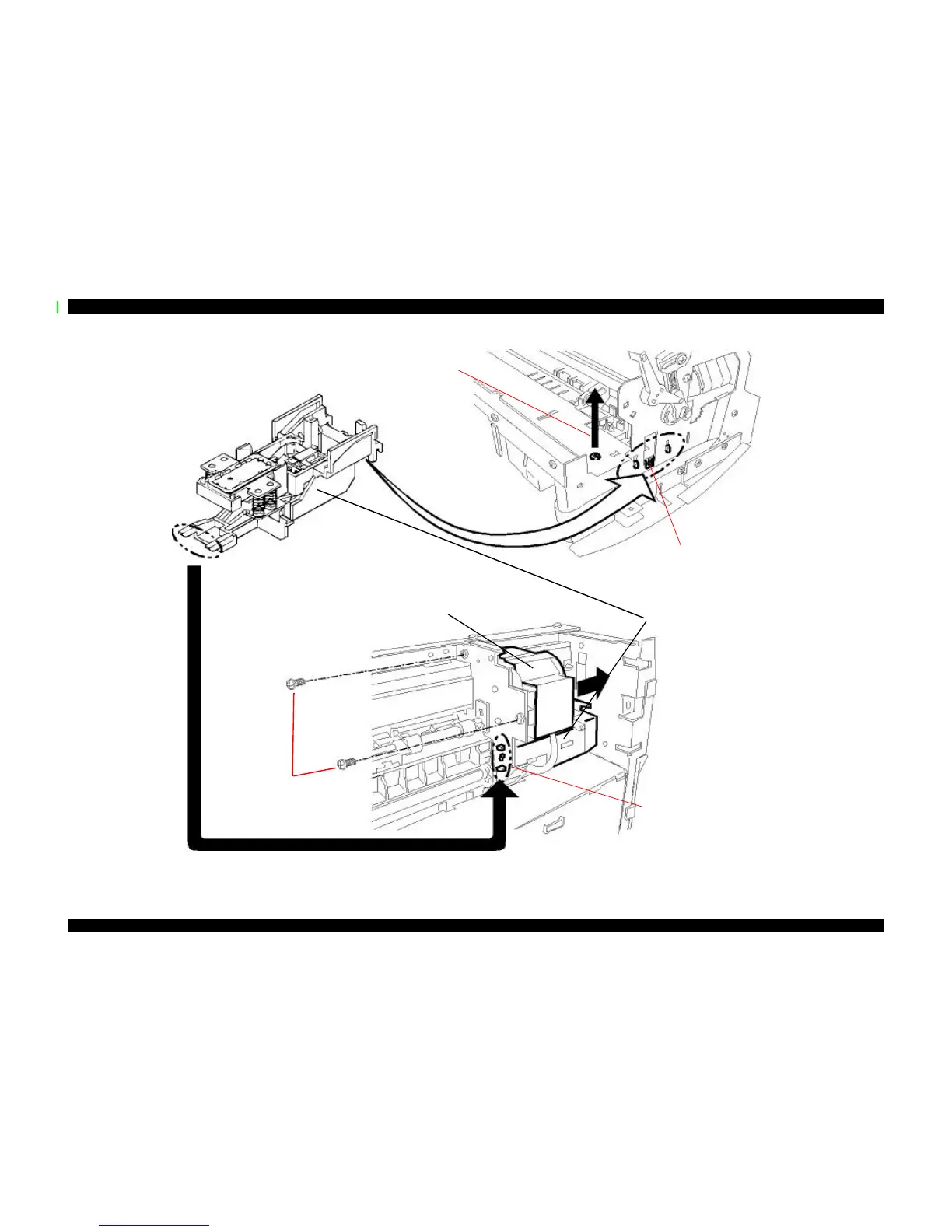

Figure 4-4. Removing the Cap and Pump Assemblies
Step 3. Loosen the screws on the
right and left sides of the paper
eject frame assembly.
Step 5. Release the hooks from
the right frame assembly.
Step 7. Release the hook
from the back of the printer
mechanism and pull out two
protrusions from the
subframe.
Cap Assembly
Pump Assembly
Step 6. Remove
two CBP 3x8
screws.
