Inserting and Removing a Transceiver
Servicing the Hardware 6-7
3. Withdraw the transceiver from its port and insert a dust cover over the optical connectors.

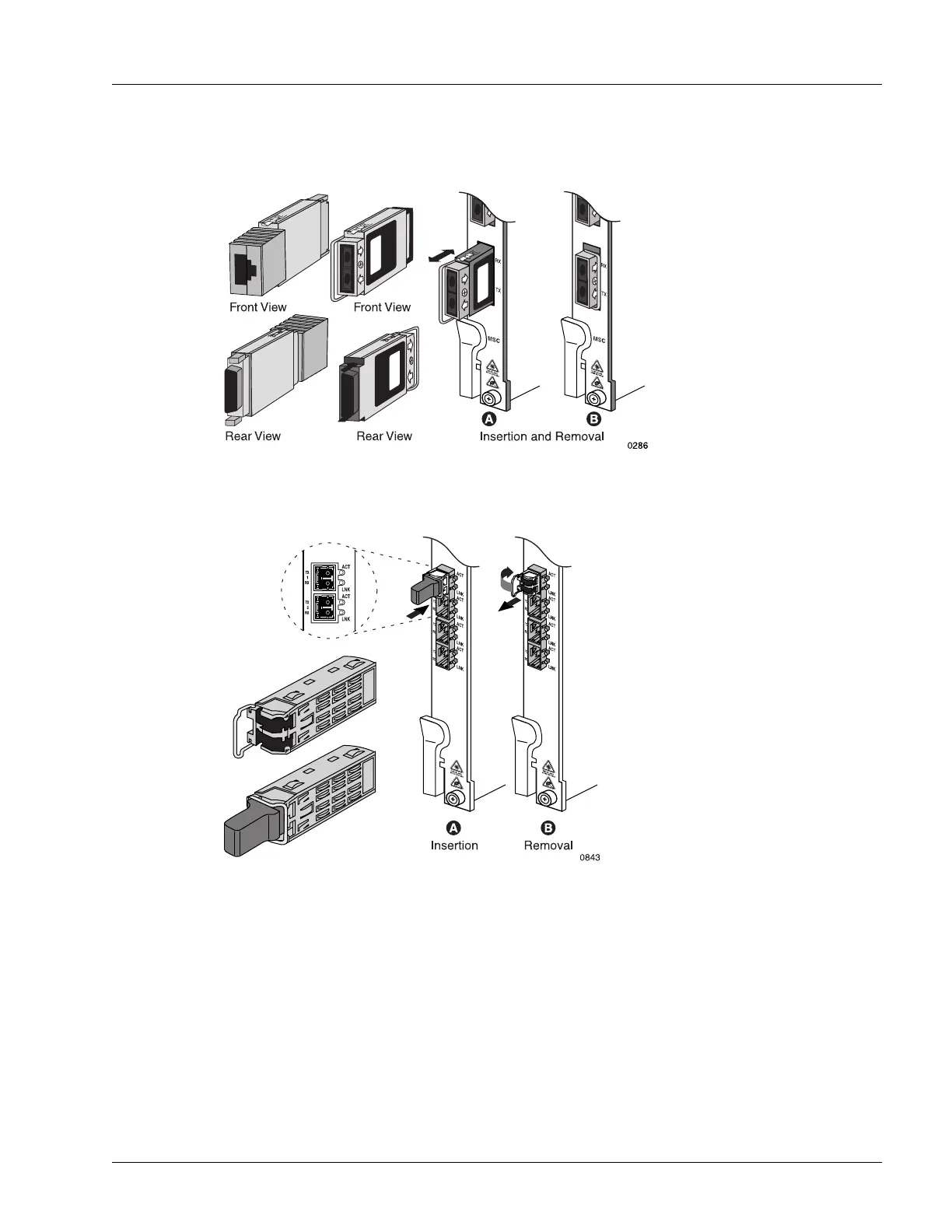

Figure 6-3 Inserting and Removing a GBIC Transceiver
Figure 6-4 Inserting and Removing an SFP Transceiver
