Completing the Installation
4-20 SmartEdge 1200 Router Hardware Guide
Select the Slots
Card slots in the SmartEdge 1200 chassis are numbered sequentially from left to right as you face the front
of the chassis; see Figure 4-16.

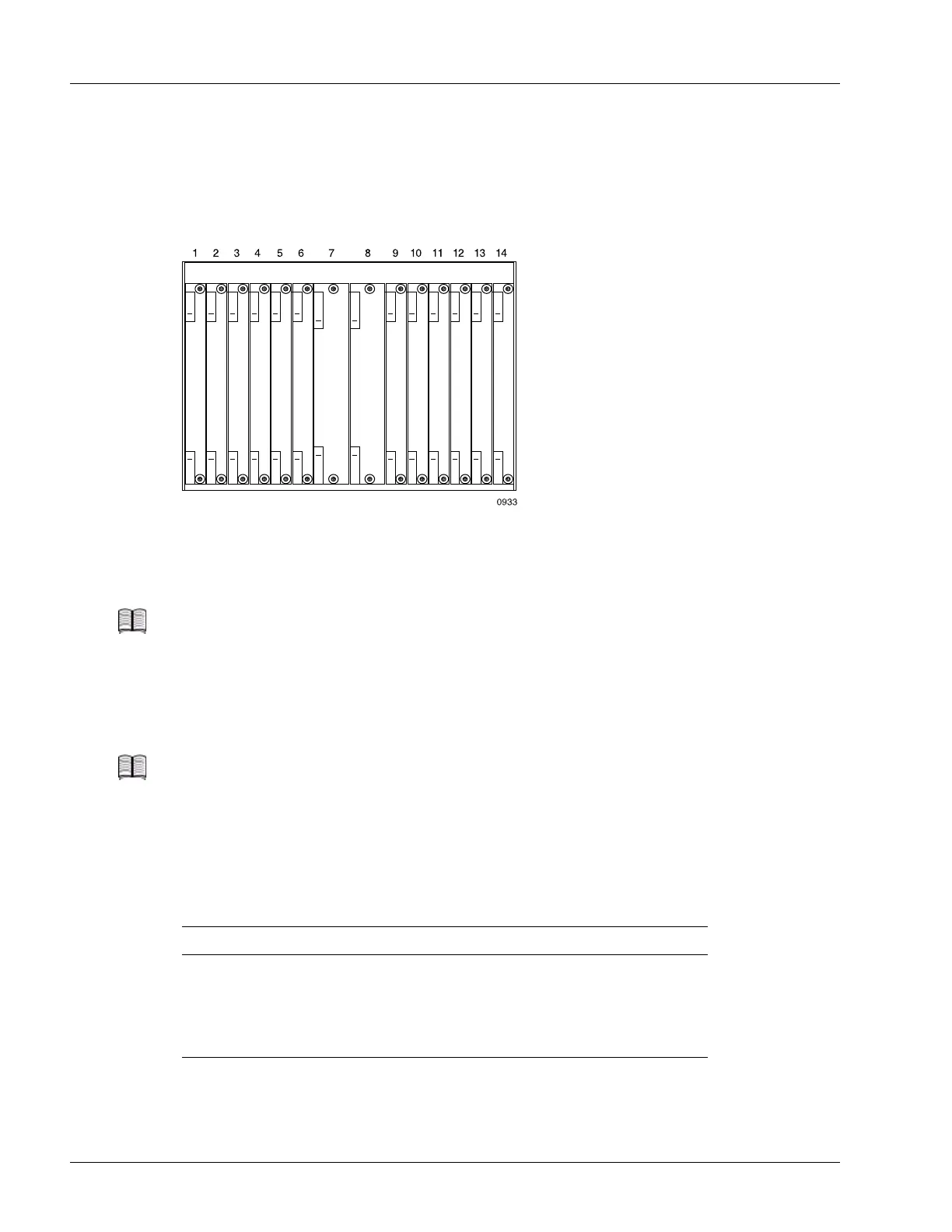

Figure 4-16 SmartEdge 1200 Card Slots
Observe the following configuration rules when installing the cards:
• Slots 7 and 8 are reserved for controller cards only.
• Optical, Ethernet, and the other Gigabit Ethernet cards, with the exception of the 20-port GE1020 traffic
card, can be installed in any of slots 1 to 6 and 9 to 14; because the 20-port GE1020 card requires two
adjacent slots, the slot range is 1 to 5 and 9 to 13.
• The XCRP4 Controller card does not support channelized SONET or SDH traffic cards.
Table 4-2 summarizes the slot assignments for the SmartEdge 1200 cards.
Note When you first power on the system, the active controller card is in slot 7. Thereafter, the slot
changes whenever a switchover occurs.
Note The breakout cables for an FE-GE traffic card can impinge on the cable routing for other cards
in the chassis. When selecting a slot for an FE-GE card in a SmartEdge 1200 chassis, choose
one of the outer slots on the left side of the chassis.
Table 4-2 Slot Assignments for SmartEdge 1200 Cards
Card Slots Available
Controller 7, 8
ATM
ATM OC-12c/STM-4c (any version)
ATM OC-3c/STM-1c (any version)
1 to 6, 9 to 14
