10/100 Ethernet and Fast Ethernet-Gigabit Ethernet Cards
Traffic Card Descriptions 2-7
10/100 Ethernet and Fast Ethernet-Gigabit Ethernet Cards
The 10/100 Ethernet card provides 12 copper-based 10Base-T or 100Base-TX ports with individually
selectable speeds of 10 Mbps or 100 Mbps. The Fast Ethernet-Gigabit Ethernet (FE-GE) card provides 60
copper-based 10Base-T or 100Base-TX ports with selectable speeds of 10 Mbps or 100 Mbps. The FE-GE
card also has two copper-based GE ports with selectable speeds of 100 or 1000 Mbps. Figure 2-3 shows
the front panels of the copper-based Ethernet cards.

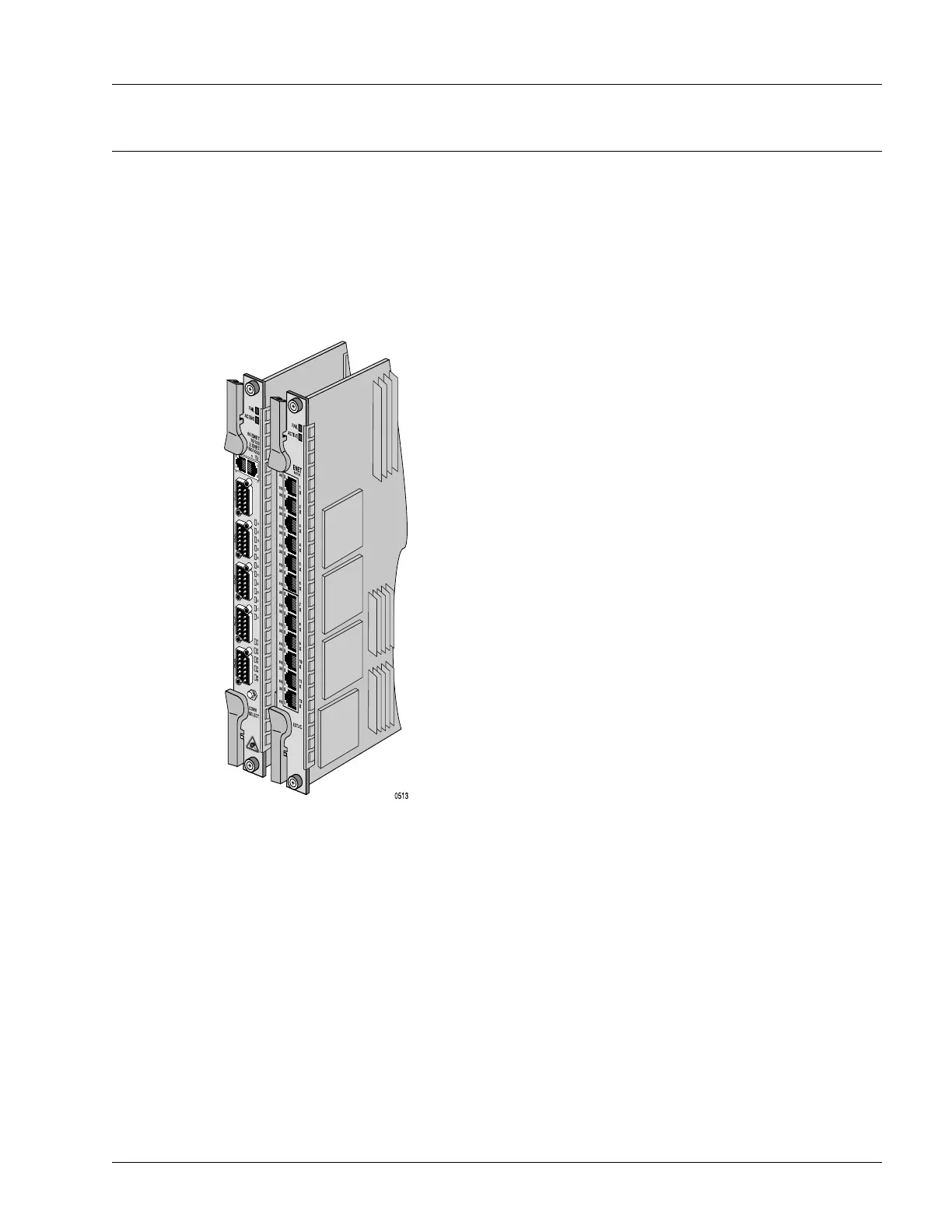

Figure 2-3 10/100 and Fast Ethernet-Gigabit Ethernet Cards
