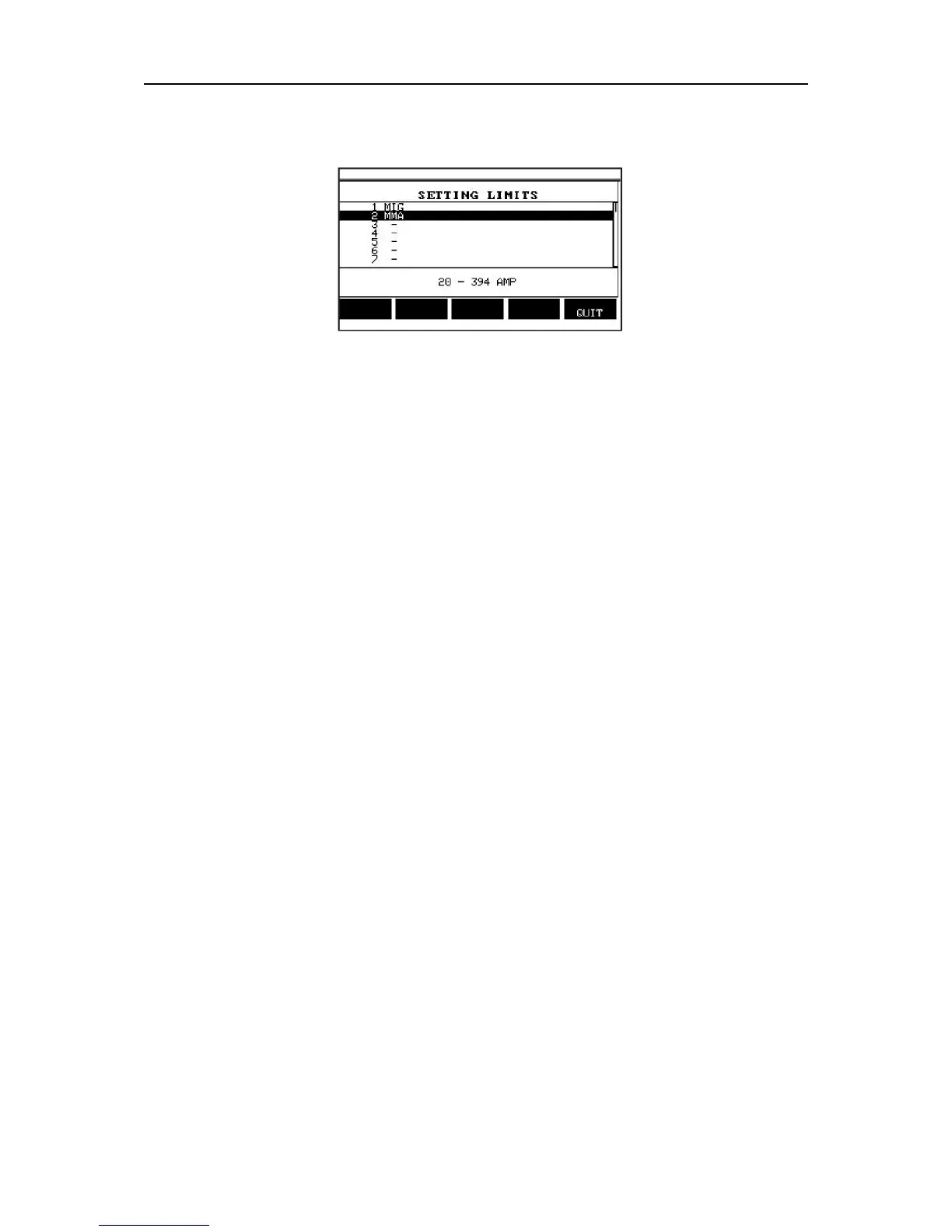

For MMA and TIG, the max. and min. values for current can be changed.
When the values have been adjusted, press STORE. When asked if the limit value is to be
saved at the selected storage point, press NO or YES. The storage point's values can be
seen under the line at the bottom. In this case, storage point 2 for the MMA limit values is 20
- 394 A.
With AUTO, the limits are set automatically according to the limits that have been set for
each welding method.
When asked if the setting limits are to be set automatically, press NO or YES and then
STORE if the setting is to be retained.
10.5 Edit measure limits
Main menu → Tools → Edit measure limits
In this menu you set your own measurement values for the various welding methods. There
are 50 storage points. Select the row for an empty storage point and press ENTER. Select
process by pressing ENTER. Then select welding process from the list that appears and then
press ENTER again.
The following values can be selected:
For MIG/MAG
• voltage: min., max., min. average, max. average
• current: min., max., min. average, max. average
• output: min., max., min. average, max. average
• wire feed unit current: min., max., min. average, max. average
Tip: To prevent feed problems, especially when robot welding, it is recommended that a max
value is given for the feed unit motor current. High motor current indicates feed problems. To
give the correct max value it is recommended that the motor current be studied during a
month's welding. Then a suitable maximum value is given.
For MMA and TIG
• voltage: min., max., min. average, max. average
• current: min., max., min. average, max. average
• output: min., max., min. average, max. average
Set the desired value with one of the right-hand knobs and press STORE.
