PLATINOUS SERIES CONTROLLER MANUAL
47

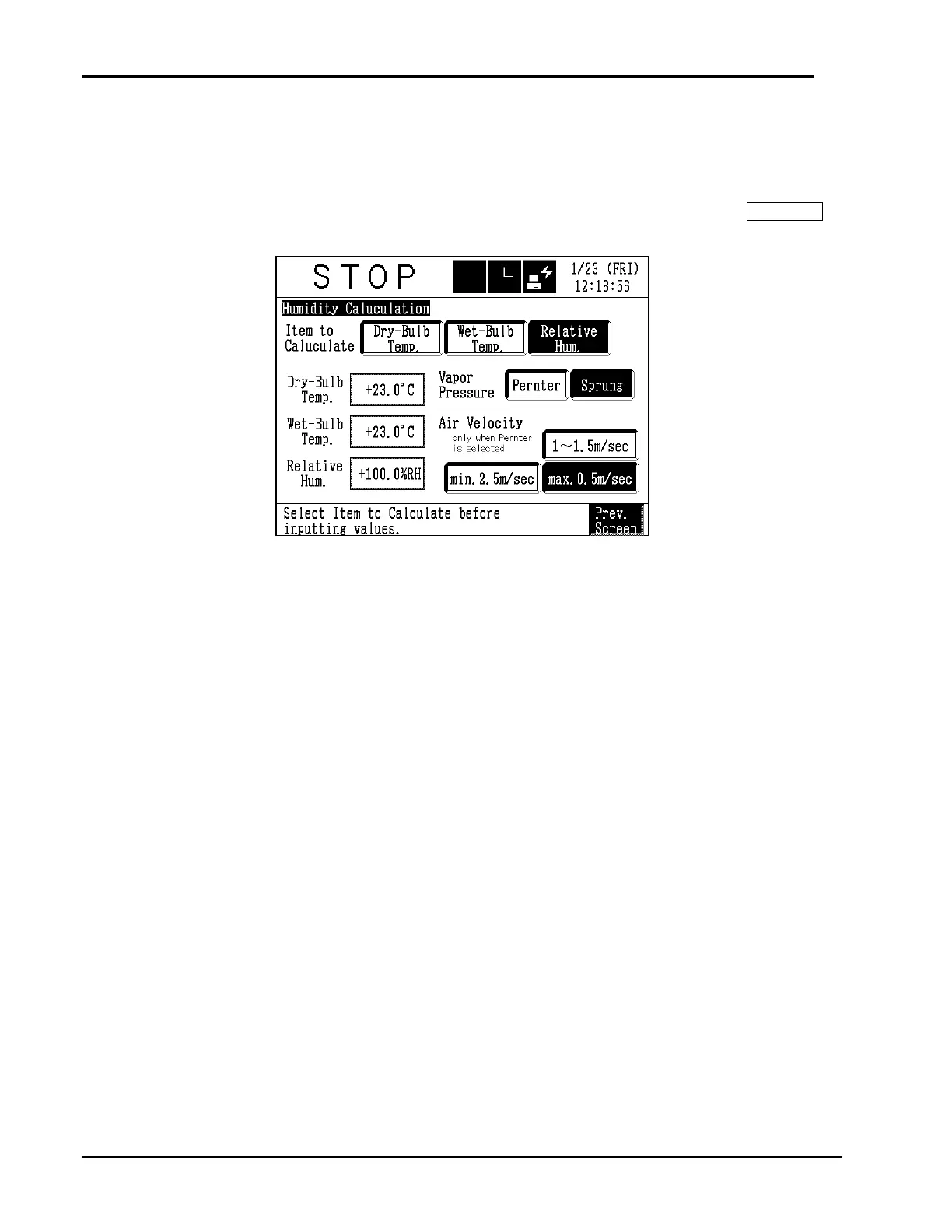

3. Set up humidity calculation.
This function calculates dry-bulb temperature, wet-bulb temperature or relative humidity using
the inputs from the other two of these variables. Here, it is also possible to select the method
of steam pressure calculation. The air Velocity setting is available only when Pernter is
selected.
Dry-Bulb Temp. : Calculates dry-bulb temperature from the wet-
bulb temperature and relative humidity.
Wet-Bulb Temp. : Calculates wet-bulb temperature from the dry-
bulb temperature and relative humidity.
Relative Hum. : Calculates relative humidity from the dry-bulb and
wet-bulb temperatures.
