PLATINOUS SERIES CONTROLLER MANUAL
32
4.9. Program View
This function displays settings of the selected program in table format.
Selected programs can be viewed but not edited.
It is a handy feature for checking setup of programs that have been run.

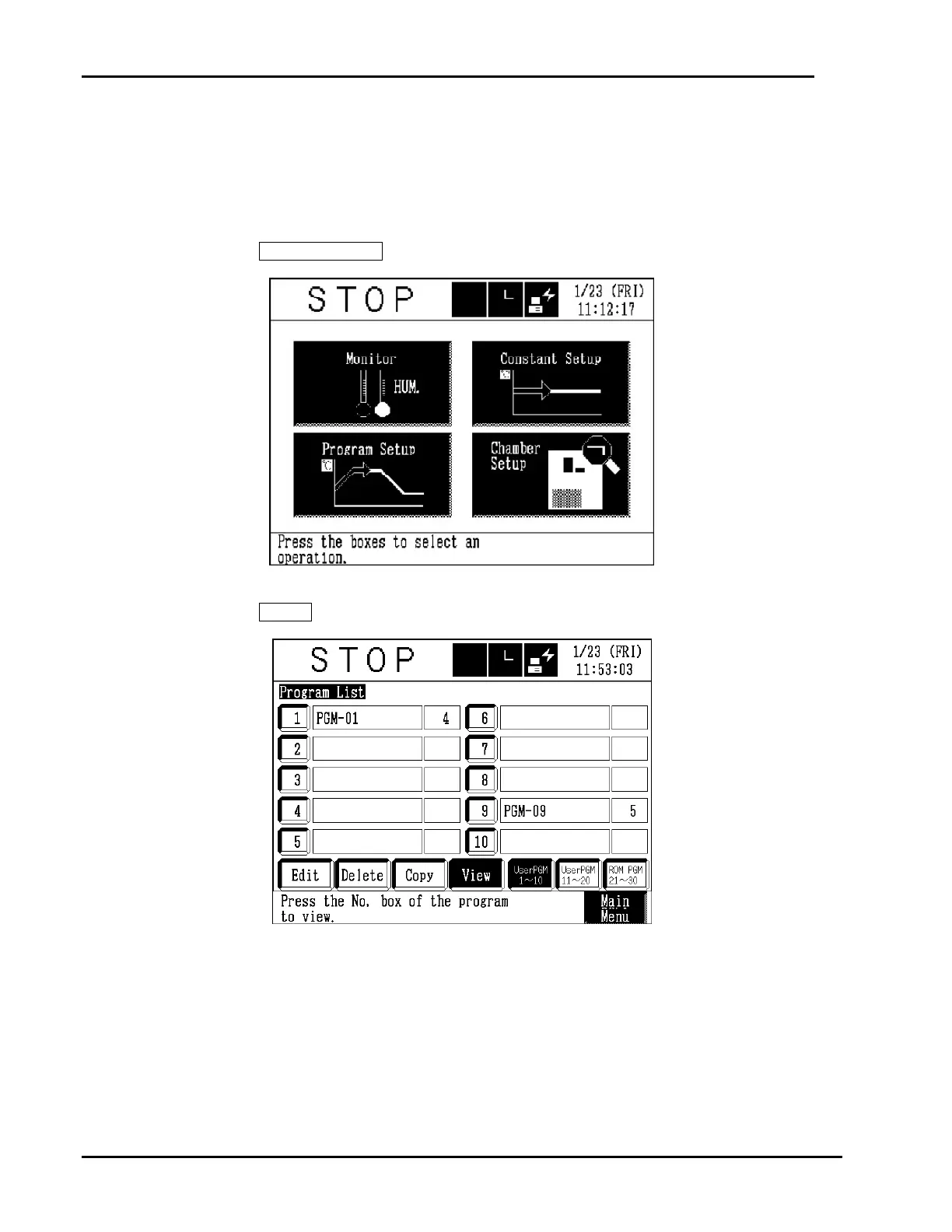

1.
Get the program setup mode.
Press the
Program Setup
box on the main menu.
T
E
M
P
.
2.
Get the pro
gram view mode.
Press the
View
button on the Program List screen.
35
37
