Chapter 1. Get Started
1. Connect the extension board(s) of your choice (go to their respective user guides if necessary)
2. Plug in both USB cables
3. Turn the Power Switch to ON - the Power On LED will light up
Software Setup Please proceed to Get Started, where Section Installation Step by Step will quickly help you set up
the development environment.
The programming guide and application examples for your ESP32-S2-Kaluga-1 kit can be found in esp-dev-kits
repository on GitHub.
Contents and Packaging
Retail orders If you order one or several samples of the kit, each ESP32-S2-Kaluga-1 development kit comes in
an individual package.

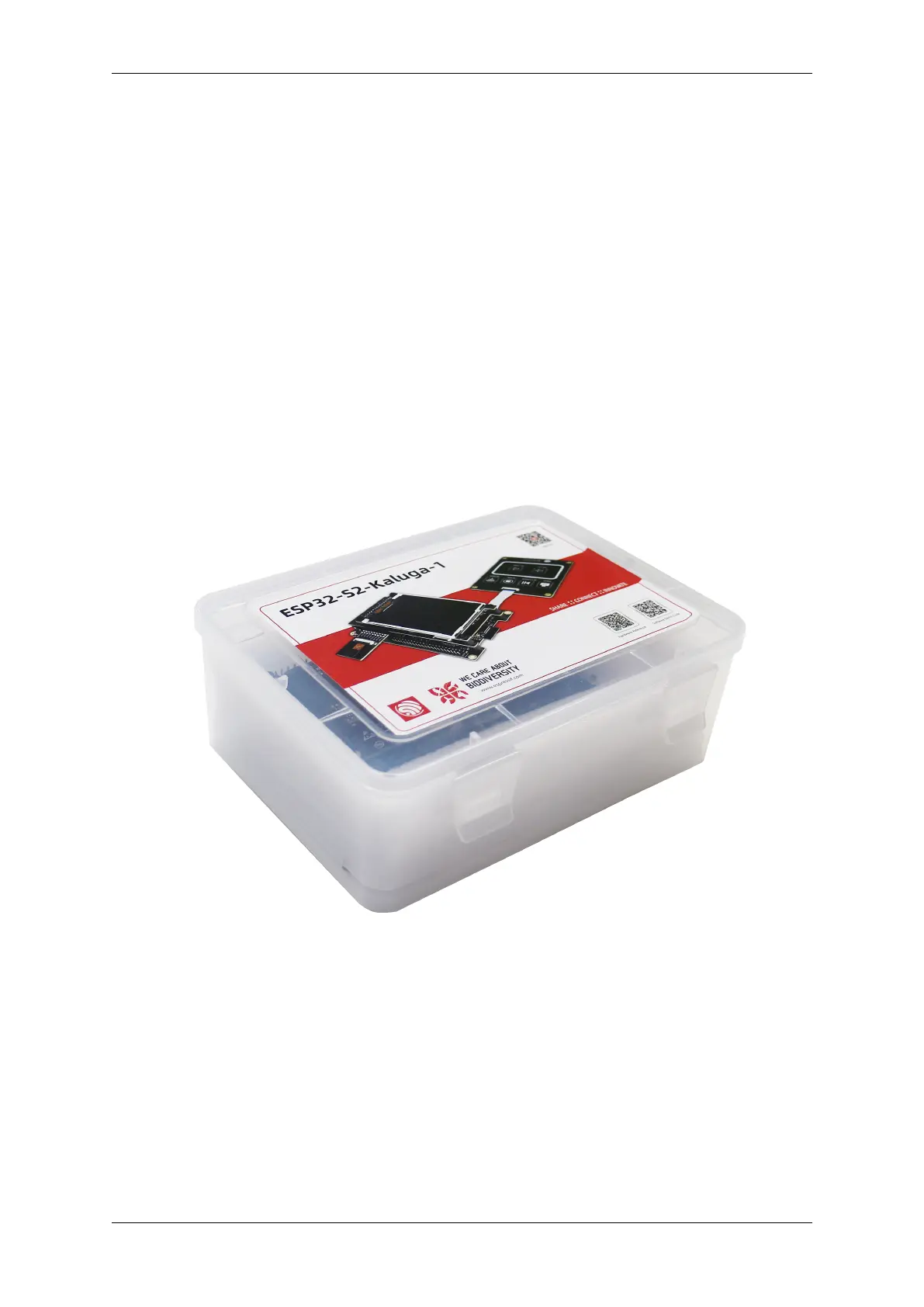

Fig. 18: ESP32-S2-Kaluga-1 - package
The contents are as follows:
• Main Board
– ESP32-S2-Kaluga-1
• Extension Boards:
– ESP-LyraT-8311A
– ESP-LyraP-CAM
– ESP-LyraP-TouchA
