EVOCA Krea Touch - Page 88

04-2017 5325 00
11. mixer
12. dispensing nozzles
13. brewing unit
1. water inlet solenoid valve
2. mechanical filter
3. air break
4. air break-emptying hose
5. heating unit
6. Pump
7. diffuser nozzle
8. flow meter
9. liquid residue container
10. conveying tray

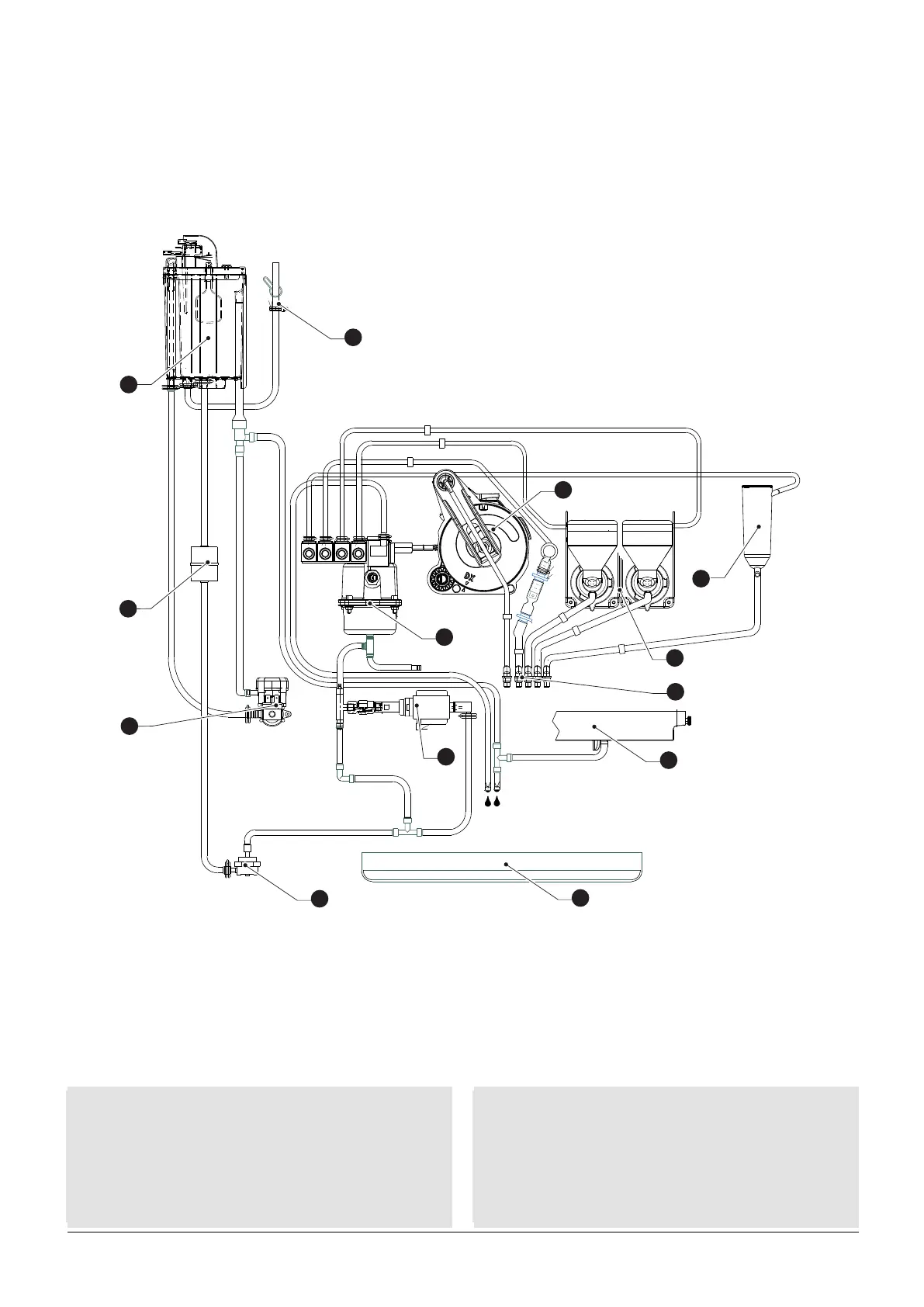

HYDRAULIC CIRCUIT
B
A
B
A
C
C
E
D
1
2
3
4
5
6
8
7
9
10
11
12
13
