Installation
Agilia - User Guide 20

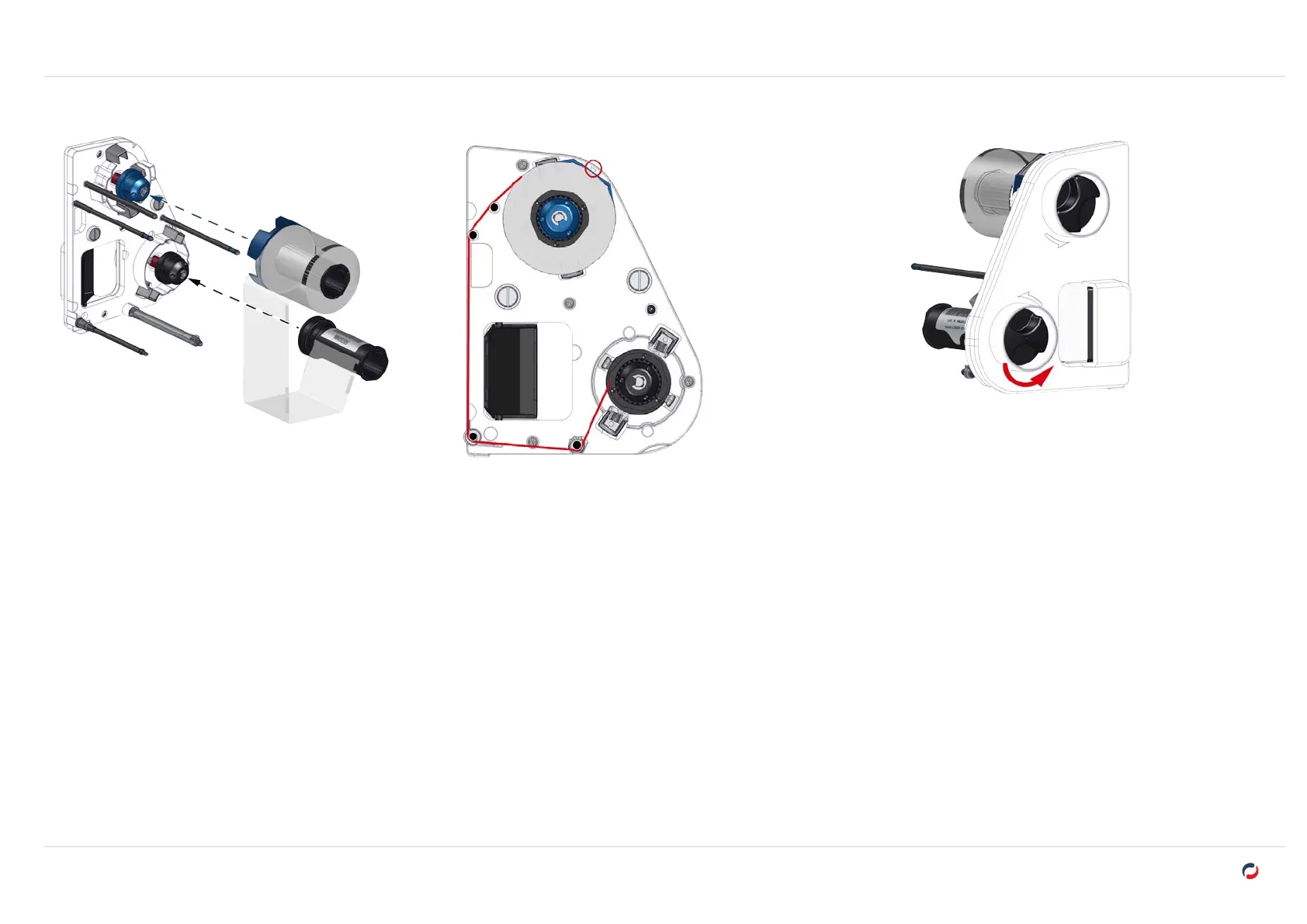

Install the retransfer film
4. Take the retransfer film.
5. Insert the start (full) roll of the film on the blue spindle. The film unwinds downwards.
A click confirms the correct insertion. The etiquette on the side of the ribbon base
must point to the arrow.
6. Put the film around the pins.
7. Insert the finish (empty) roll of the film on the black spindle.
8. Use the wheel on the outside of the cassette to tighten the
ribbon, following the direction of the arrows (go to the
second set of black marks).
