EVS DYVI - SDI I;O Board V2.2 (Allowing 32×16 Per PM)

TECHNICAL REFERENCE MANUAL Dyvi 2.0.7.2
Processing Module Installation and Cabling 31
6.3.2 SDI I/O Board v2.2 (allowing 32×16 per PM)
Schemas
The I/O board has 8 inputs and 4 outputs with analog reference.

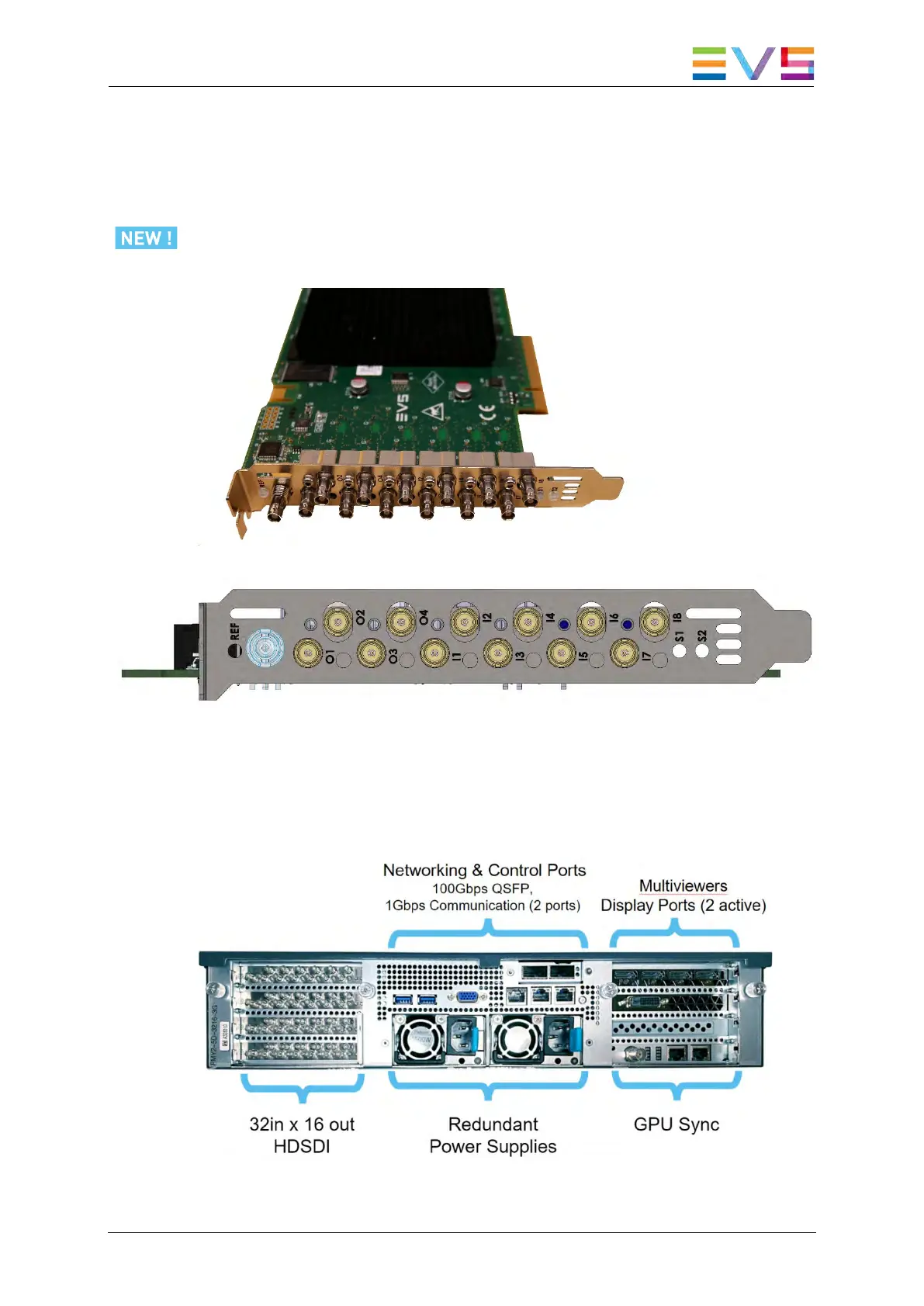

Figure: SDI I/O 8×4 Board
Configuration 32 SDI Inputs / 16 SDI Output:
Figure: PMY Server Backplane
