Managing Data
FTB-
2/FT
B-2 P
ro an
d FTB-
4 P
ro
199

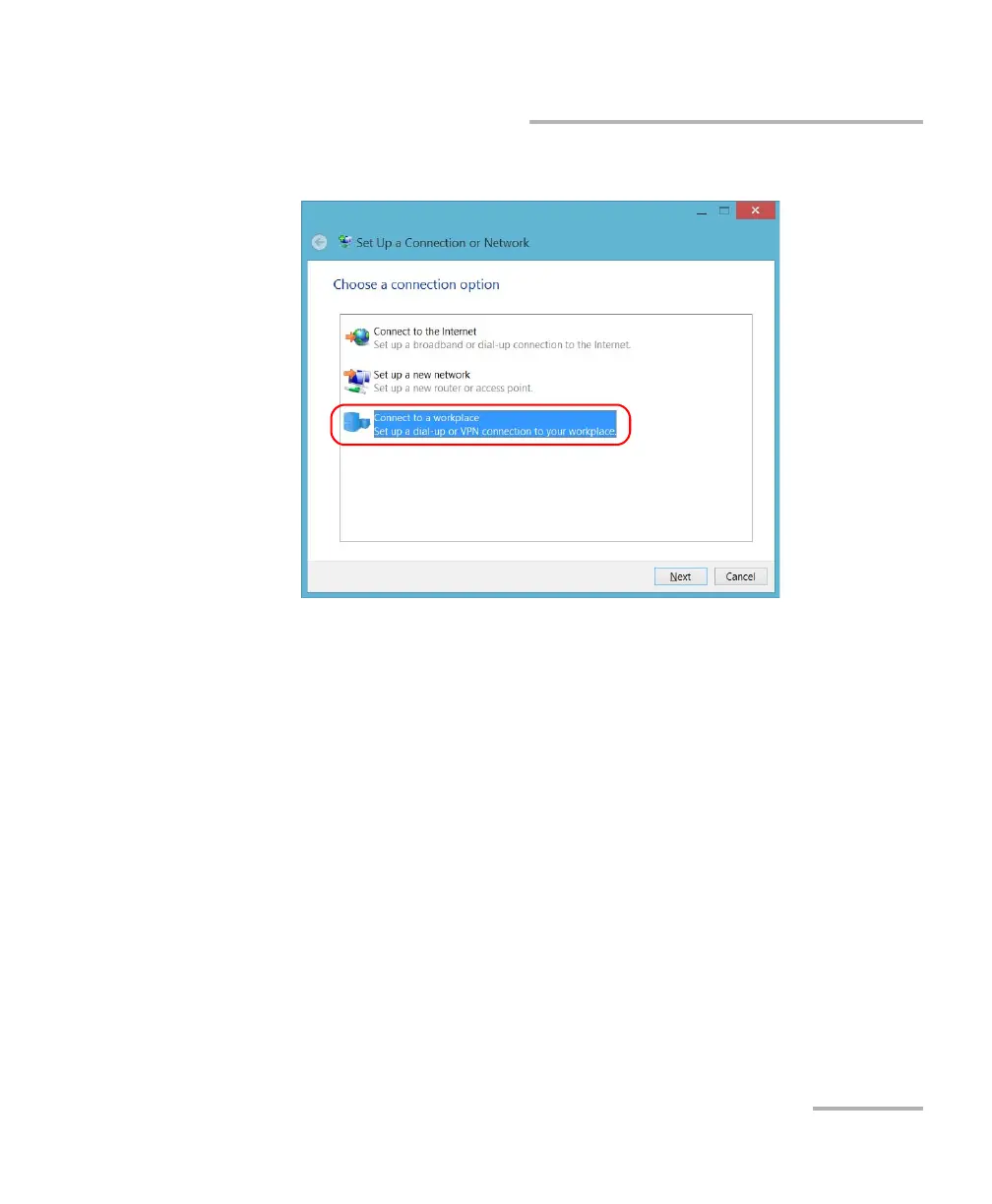

Connecting to a VPN from Y
our Unit
6.
Ta
p
Connect to
a workplace
, and then tap
Next
.
7.
F
ollow the on-screen instructions.
