Testing Network Connections

228 FTB-2/FTB-2 Pro and FTB-4 Pro

Performing a Ping Test

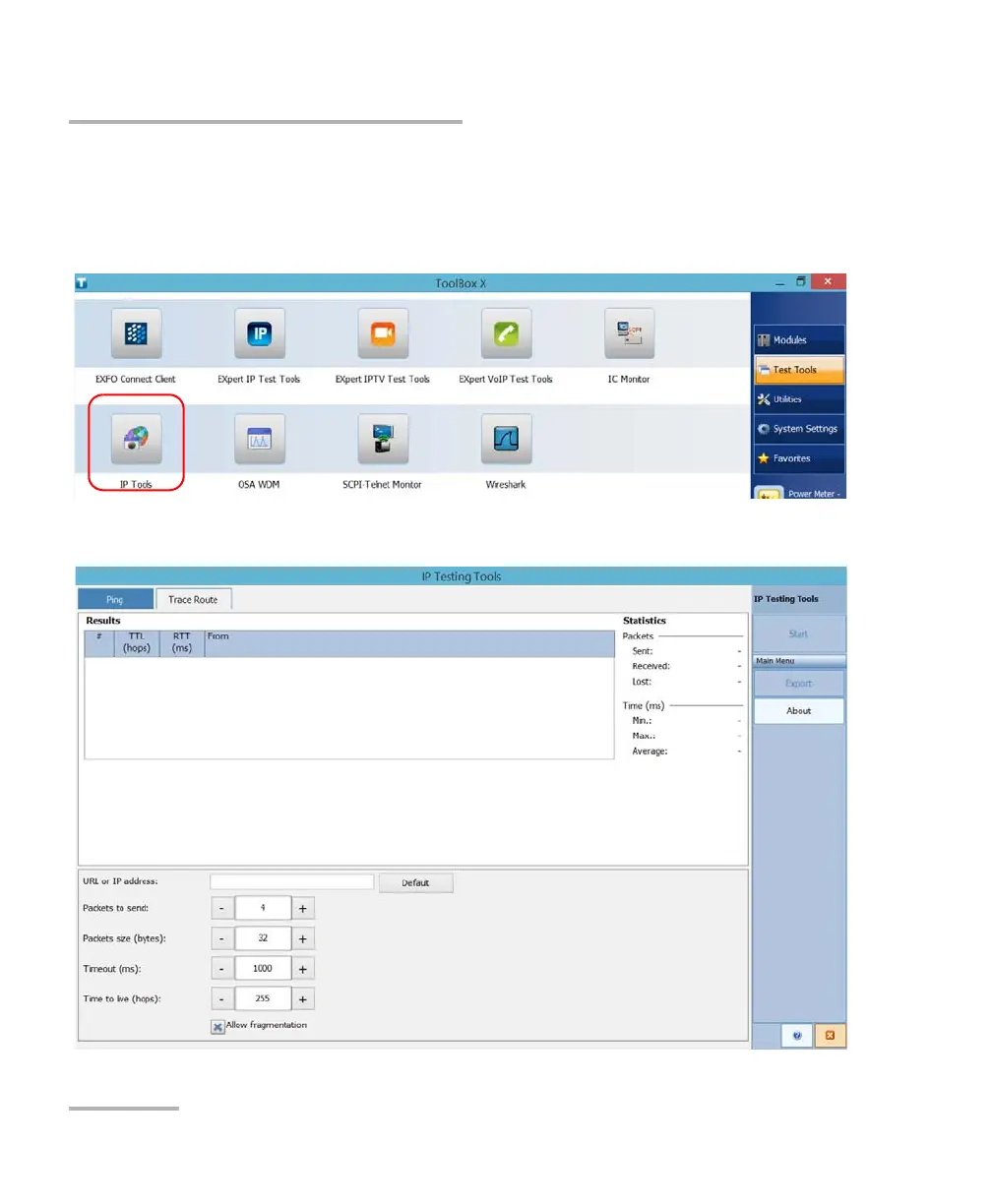

To perform a ping test:

1. From the main window, tap Test Tools.

2. Tap IP Tools.

3. From IP Testing Tools, select the Ping tab.
