Getting Started with Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 37

Installing the Carry Handle

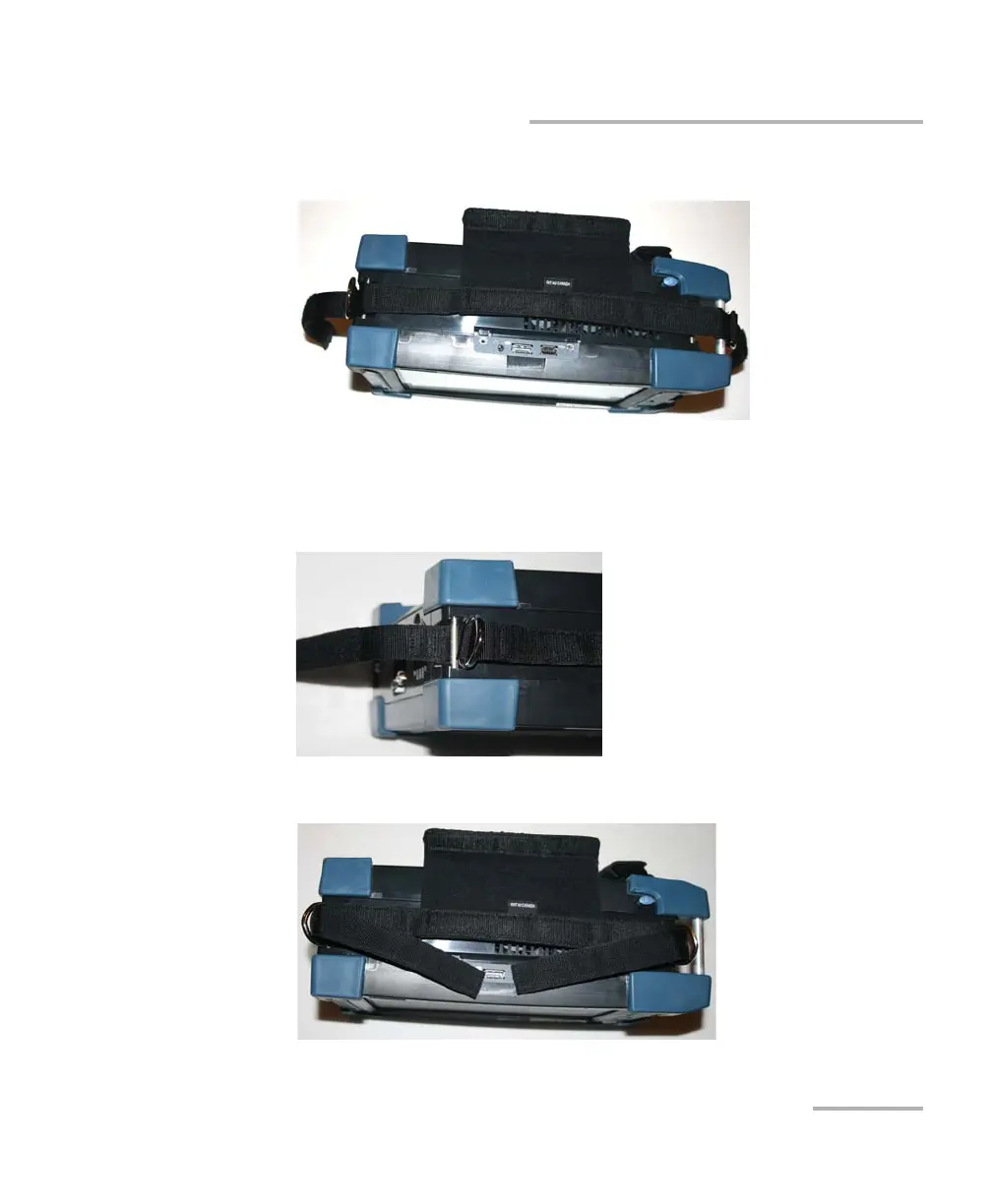

3. Place the handle flat on the top of your unit as shown below.

4. Slide each end of the handle under the corresponding metal rod.

5. Pull on the straps until the base of each D-shaped metal ring rests on

the corresponding rod.

6. Slide the straps through the D-shaped rings.
