Getting Started with Your Unit

38 FTB-2/FTB-2 Pro and FTB-4 Pro

Installing the Carry Handle

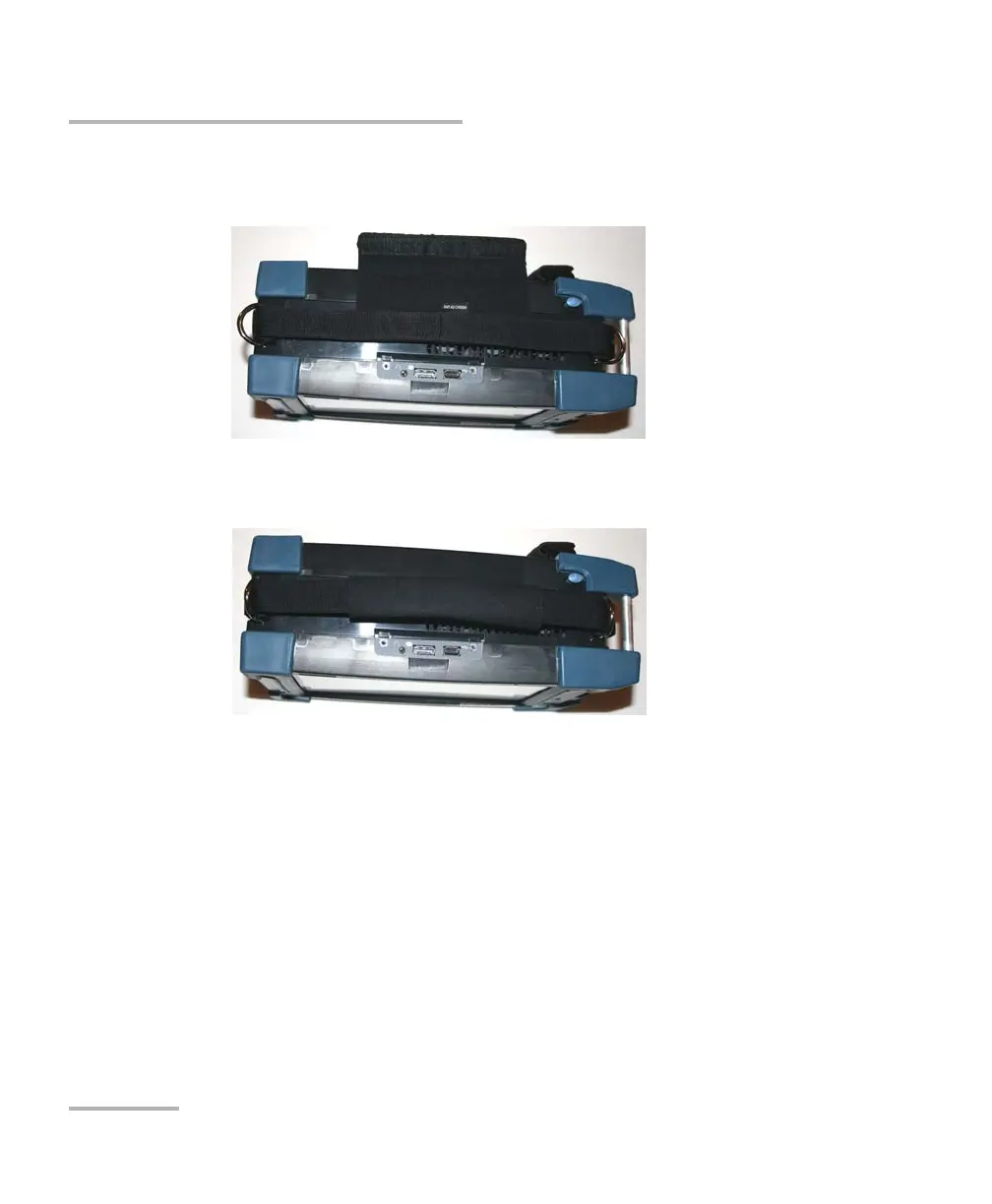

7. Fold the Velcro straps towards the center. Both ends should meet

without any gap.

8. Fold the large part of the handle over the straps, and secure it in place

with the Velcro.

You are now ready to use the carry handle, or to attach a shoulder strap

(see Installing the Shoulder Strap on page 39).
