Getting Started with Your Unit

FTB-2/FTB-2 Pro and FTB-4 Pro 59

Turning Off Your Unit

To define the behavior of the power button:

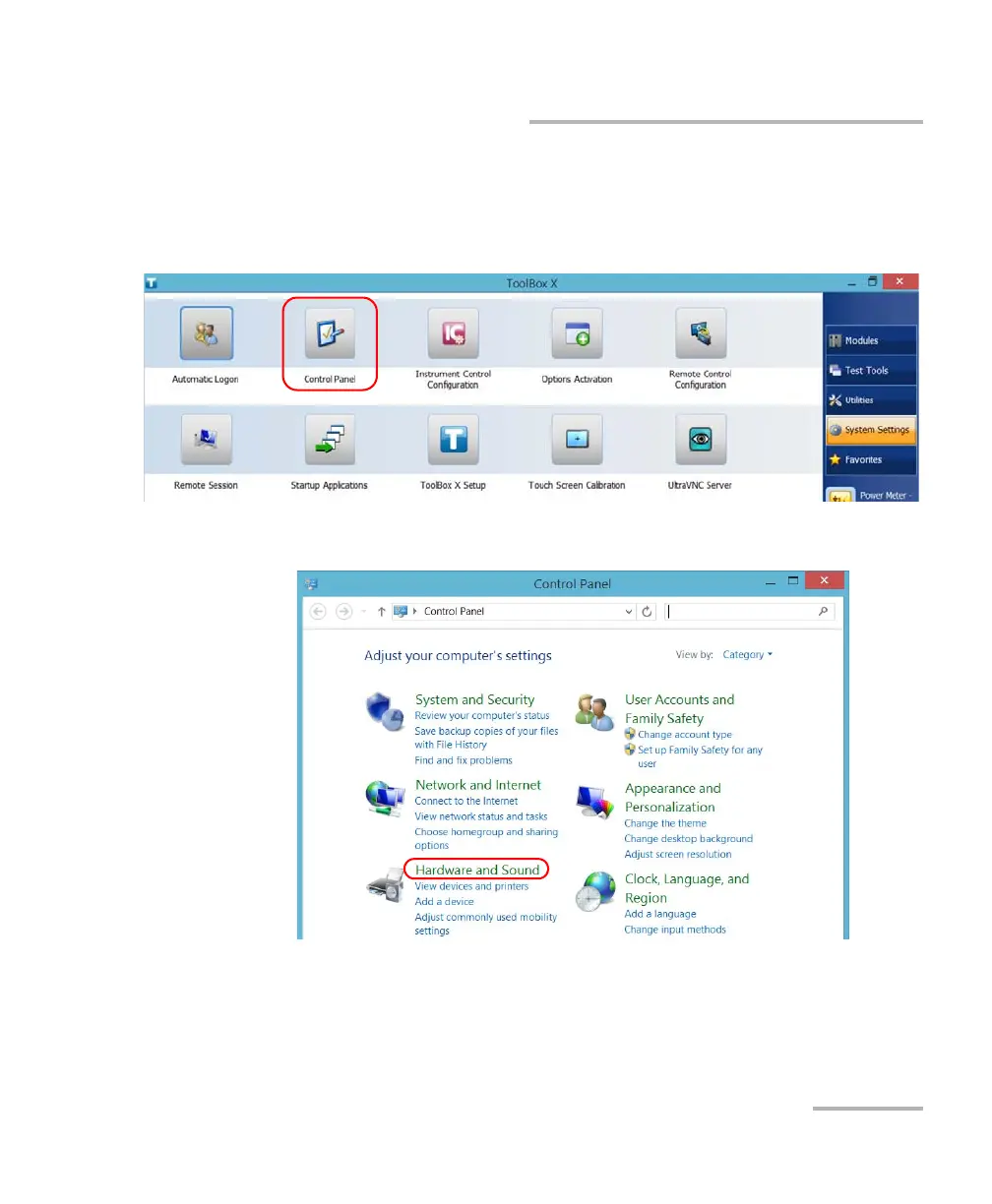

1. From the main window, tap the System Settings button.

2. Tap Control Panel.

3. Tap Hardware and Sound.
