Maintenance
g006888

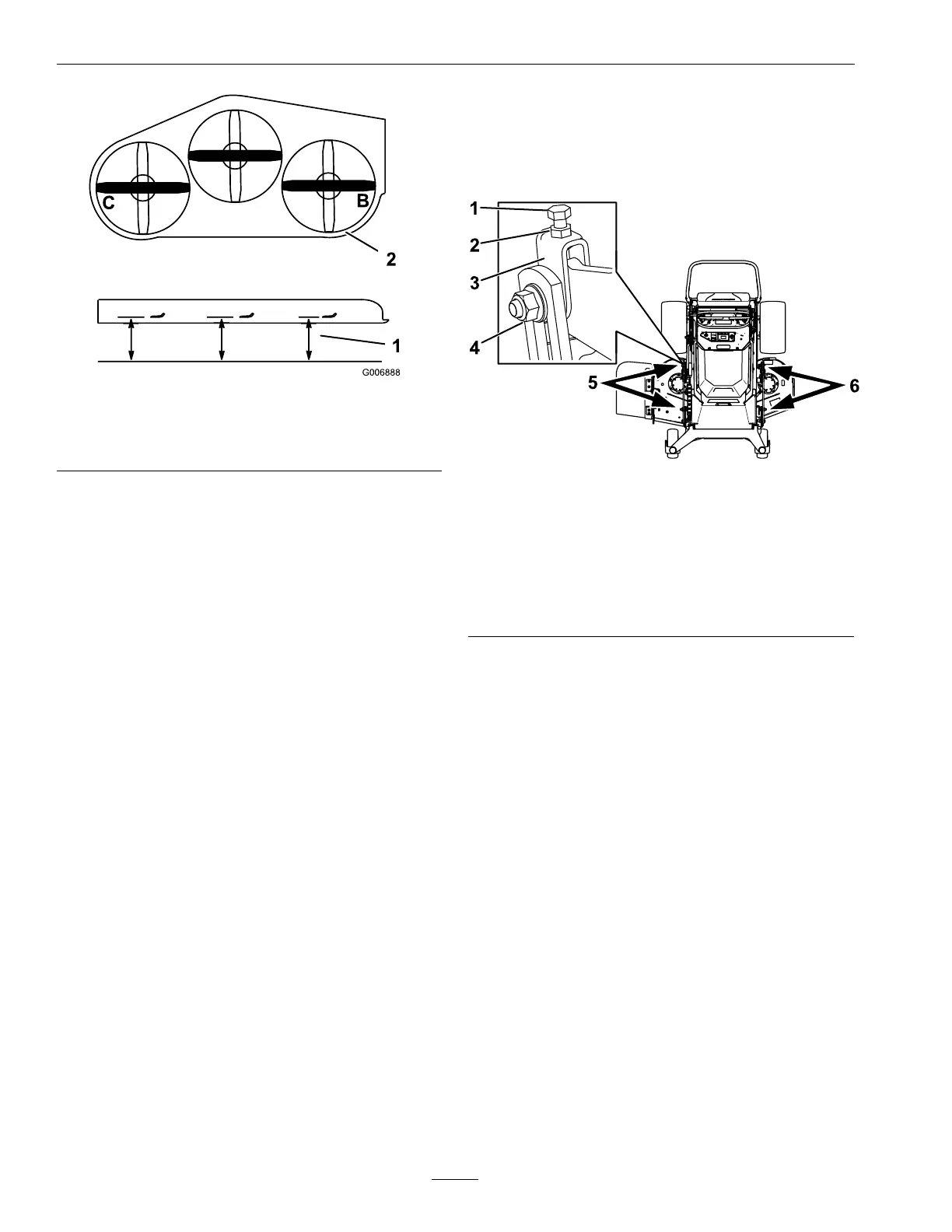

Figure 71
1. Measure from a level
surface
2. Measure the blade at
points B and C
6. T he difference betw een measurements B and C
should be no more than 6 mm (1/4 inc h).
Note: If it is not cor rect, refer to Lev eling the
Mo w er Deck fr om Side to Side .
Leveling the Mower Deck from Side
to Side
1. Loosen the side n ut and jam n ut in the y ok es y ou
w ant to adjust.
g377364
Figure 72
1. T op bolt
4. Side nut
2. Jam nut 5. Adjust these yokes to
adjust the right side of
the mower deck.
3. Y oke 6. Adjust these yokes to
adjust the left side of the
mower deck.
2. R otate the top bolt of the y ok es to adjust the
height of the mo w er dec k.
Note: R otate the bolts cloc kwise to raise the
dec k; rotate the bolt countercloc kwise to lo w er it.
3. Tighten the jam n uts and side bolts .
4. Chec k the side-to-side height; refer to Checking
the Mo w er Deck Side-to-Side Height section
48
