Extreme Networks ExtremeSwitching X440-G2 Series User Manual

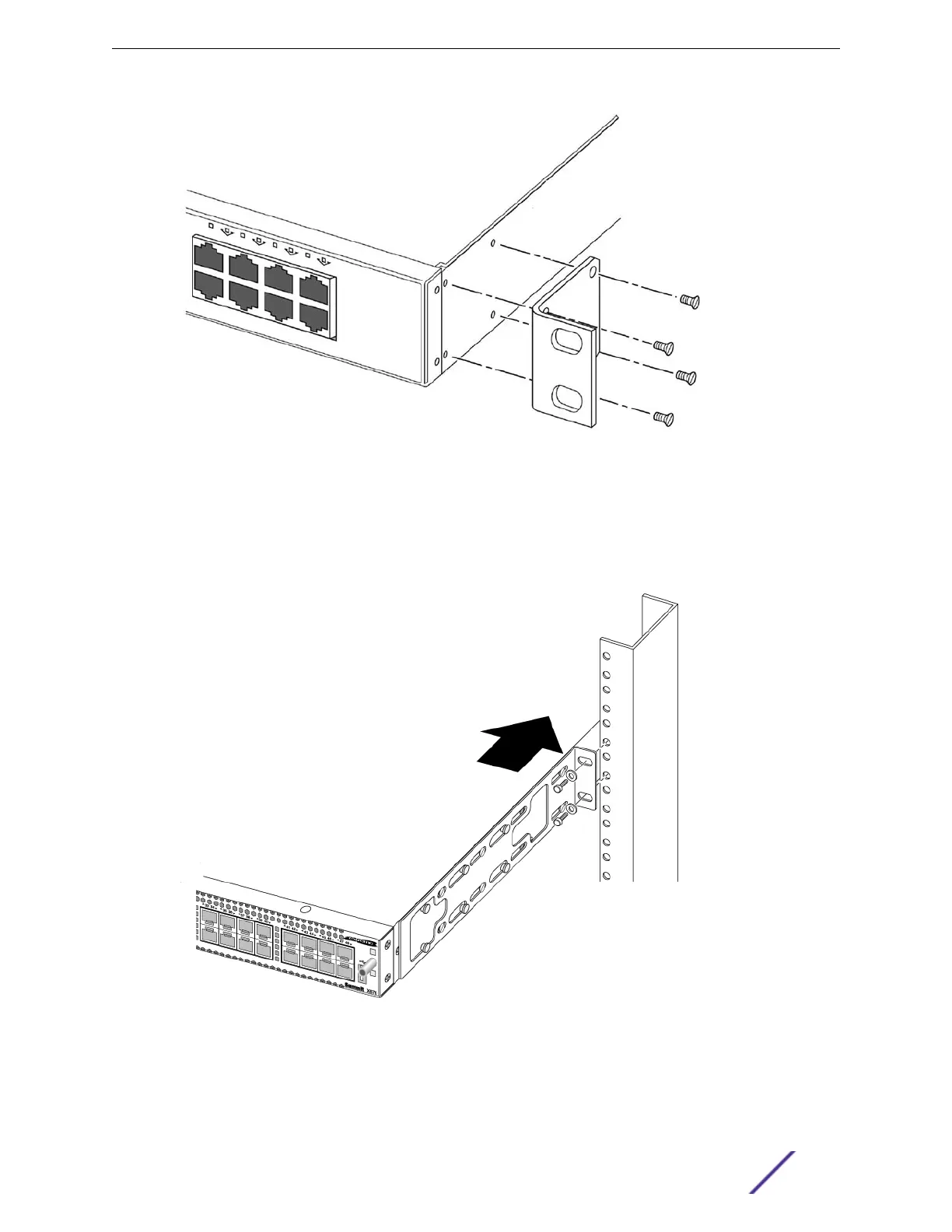

Figure 135: Front Mount: Attaching a Short Mounting Bracket
2 Use the small bracket-mounting screws (provided) to secure the bracket to the switch housing.
3 Repeat step 1 and step 2 to attach the other bracket to the other side of the switch.
4 Slide the switch into the equipment rack or cabinet.
Figure 136 shows an example of a mid-mount installation.
Figure 136: Sliding the Switch into the Rack
5 Secure the mounting bracket flanges to the rack, using screws that are appropriate for the rack.
(Rack-mounting screws are not provided.)
Installing Your Extreme Networks Switch
ExtremeSwitching and Summit Switches: Hardware Installation Guide 183

Extreme Networks ExtremeSwitching X440-G2 Series Specifications

General

Form Factor	Rack-mountable
VLAN Support	Yes
Humidity	5% to 95% non-condensing
Model	X440-G2 Series
Port Type	Gigabit Ethernet
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
Stacking	Yes, up to 8 switches
Layer Support	Layer 2/3
Operating Temperature	0°C to 50°C
Product Type	Switch
Jumbo Frames	9216 bytes
AC Power Supply	100-240 VAC, 50-60 Hz
Storage Temperature	-40°C to 70°C
Port Configuration	24 or 48 ports
Power over Ethernet (PoE)	Optional
