To install an STK-RPS-150PS in an RPS shelf, see Installing an STK-RPS-150PS in an RPS Shelf on page
242.
Required Tools
A flat-blade screwdriver is required to install the STK-RPS-150CH2 or STK-RPS-150CH8 shelf and STK-
RPS-150PS power supplies.
Unpacking the Shelf and Power Supply
The shelf and the power supply are shipped separately. To unpack them, follow these steps:
1 Open the box and remove the packing material protecting the shelf or power supply.
2 Verify that the unit your ordered and a quick reference guide is included in the package.
3 Perform a visual inspection of the contents for any signs of physical damage. Contact Extreme
Networks if there are any signs of damage.
Installing an STK-RPS-150PS in an RPS Shelf
Caution
Observe all ESD precautions when handling sensitive electronic equipment.
On the STK-RPS-150CH8 shelf, a cover plate will be in place over each power-supply slot.
To install the power supplies:
1 Place the RPS shelf on a sturdy flat surface where you plan to install power supplies.
2 Align the power supply with one of the slots, then slide the power supply forward until its front
panel is flush against the RPS shelf front panel.

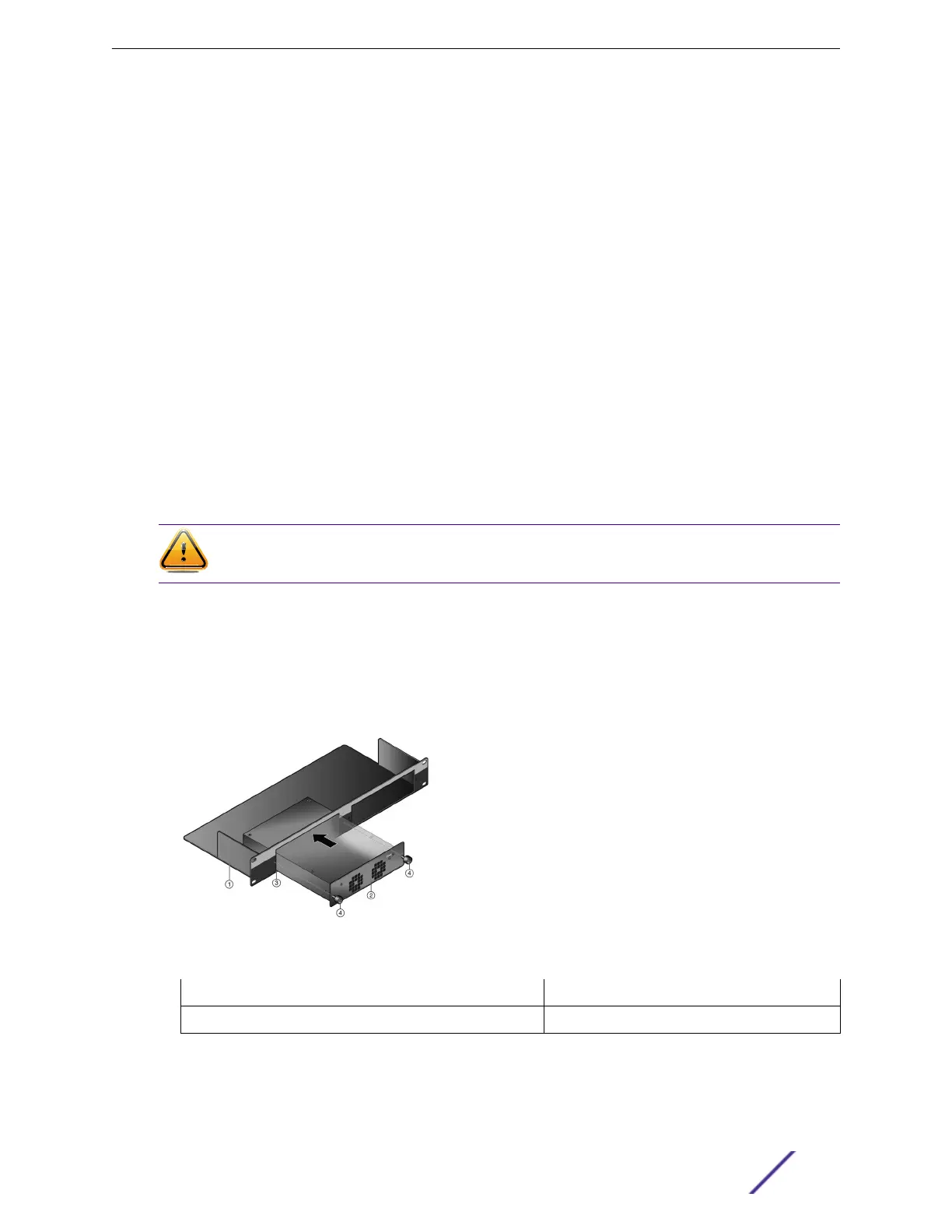

Figure 188: STK-RPS-150PS Installation in an STK-RPS-150CH2 Shelf
1 = STK-RPS-150CH2 shelf
3 = Shelf power supply slot
2 = STK-RPS-150PS power supply 4 = Captive screws (2)
Installing External Power Supplies
ExtremeSwitching and Summit Switches: Hardware Installation Guide 242
