IP U
NICAST
R
OUTING

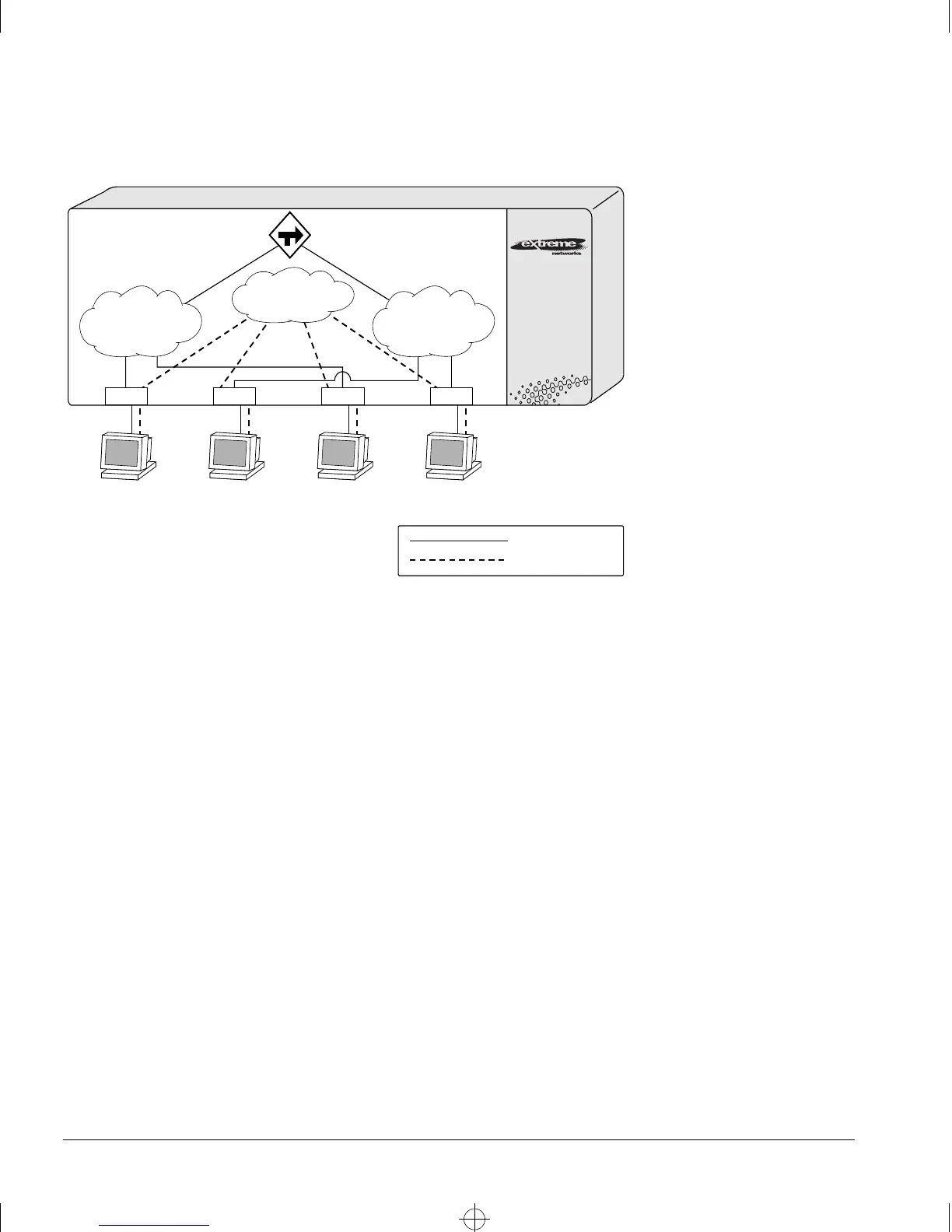

Figure 9-2:
Unicast routing configuration example
The stations connected to ports 1 through 4 generate a combination of IP traffic and
NetBIOS traffic. The IP traffic is filtered by the protocol-sensitive VLANs. All other
traffic is directed to the VLAN MyCompany.
In this configuration, all IP traffic from stations connected to ports 1 and 3 have access
to the router by way of the VLAN Finance. Ports 2 and 4 reach the router by way of the
VLAN Personnel. All other traffic (NetBIOS) is part of the VLAN MyCompany.
The example in Figure 9-2 is configured as follows:
create vlan Finance
create vlan Personnel
create vlan MyCompany
config Finance protocol ip
config Personnel protocol ip
config Finance add port 1,3
config Personnel add port 2,4
config MyCompany add port all
1
Finance Personnel
My Company
192.207.36.0192.207.35.0
192.207.36.1192.207.35.1
234
IP
NetBIOS
IP
NetBIOS
IP
NetBIOS
IP
NetBIOS
= IP traffic
= NetBIOS traffic
