1-14 S
UMMIT
S
WITCH
I
NSTALLATION
AND
U
SER
G
UIDE
S
UMMIT
O
VERVIEW
S
UMMIT
4/FX F
RONT
V
IEW

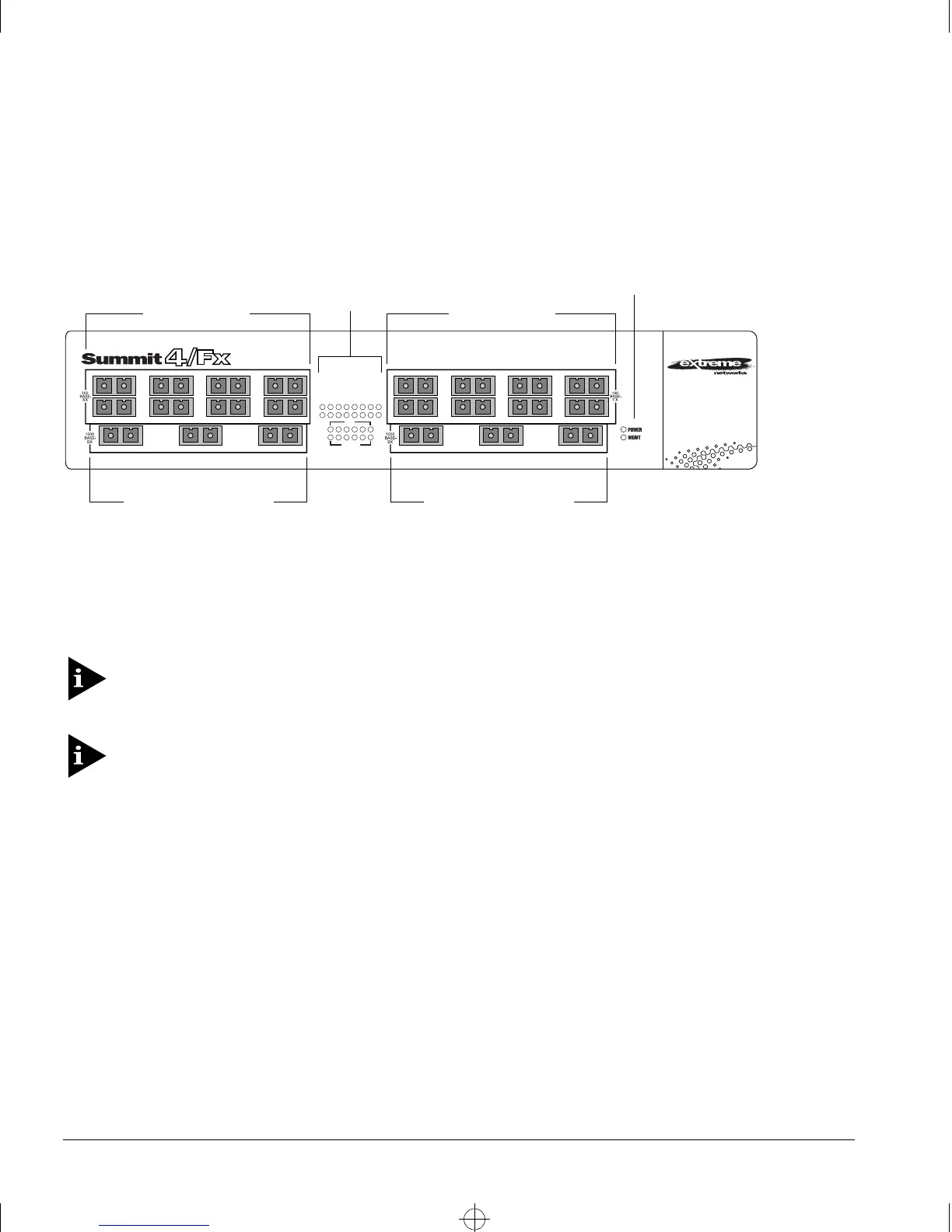

Figure 1-7 shows the Summit4/FX front view.
Figure 1-7:
Summit4/FX front view
The Summit4/FX has 16 100BASE-FX ports and 6 Gigabit Ethernet ports. All ports use
standard SC connectors. The Gigabit Ethernet ports support 1000BASE-SX over
multimode fiber-optic cable.
For information on supported media types and distances, refer to Table 1-2.
For information on Summit LEDs, refer to “LEDs,” on page 1-16.
Unit status LEDs
100 Mbps ports
Gigabit Ethernet ports
Port status
LEDs
Gigabit Ethernet ports
12345678
9 1011121314
ACTIVITY
LINK
15 16
FLASHING AMBER
SOLID AMBER
GREEN
=
=
=
TRAFFIC
DISABLED
ENABLED, LINK OK
123456
123456
9 101112
1234
13 14 15 16
5678
654
321
100 Mbps ports
