2-3
I
NSTALLING THE
S
UMMIT
For more information on 1000BASE-SX and 1000BASE-LX link characteristics,
refer to IEEE Draft P802.3z/D4.2, Table 38-2 and Table 38-6.
I
NSTALLING THE
S
UMMIT
The Summit can be mounted in a rack, or placed free-standing on a tabletop.
R
ACK
M
OUNTING
The switch is 2U high and will fit in most standard 19-inch racks.
The rack mount kits must not be used to suspend the switch from under a table
or desk, or attach it to a wall.
To rack mount the Summit, follow these steps:
1 Place the switch the right way up on a hard flat surface, with the front facing toward
you.
2 Remove the existing screws from the sides of the chassis and retain for Step 4.
3 Locate a mounting bracket over the mounting holes on one side of the unit.
4 Insert the four screws and fully tighten with a suitable screwdriver, as shown in
Figure 2-1.

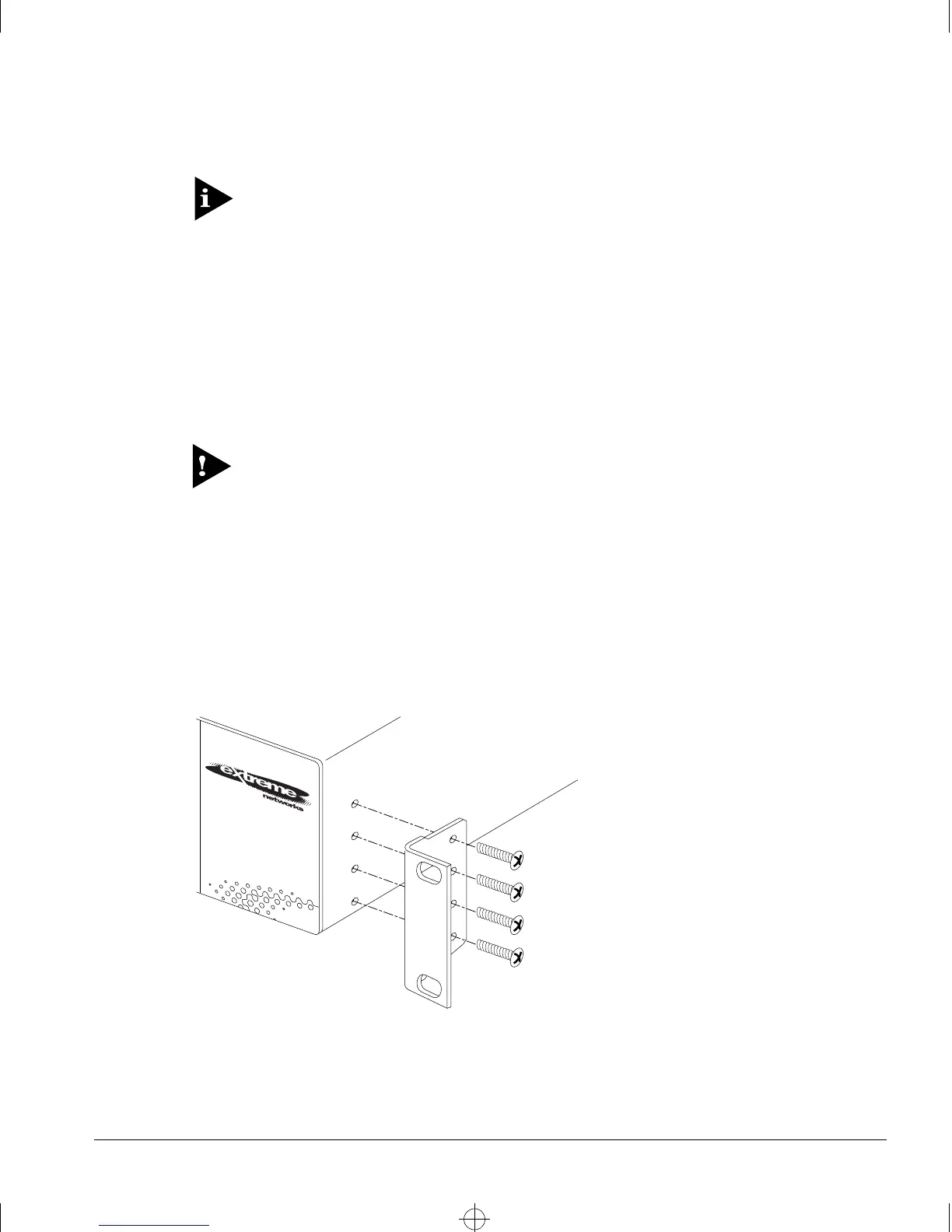

Figure 2-1:
Fitting the mounting bracket
Summit.bk : 2INSTALL.FM Page 3 Thursday, June 18, 1998 9:27 AM
