FaroArm
®
Manual
January 2009
8
Chapter 1: Introduction to the FaroArm
®
You can bolt the Surface Mount Plate directly to a surface using the
mounting screws in the probe case. Make sure to tighten each mounting
screw with the hex wrench.
You can bolt the 3½” mounting ring directly to a surface using the
mounting screws in the probe case. Make sure to tighten each mounting
screw with the hex wrench.

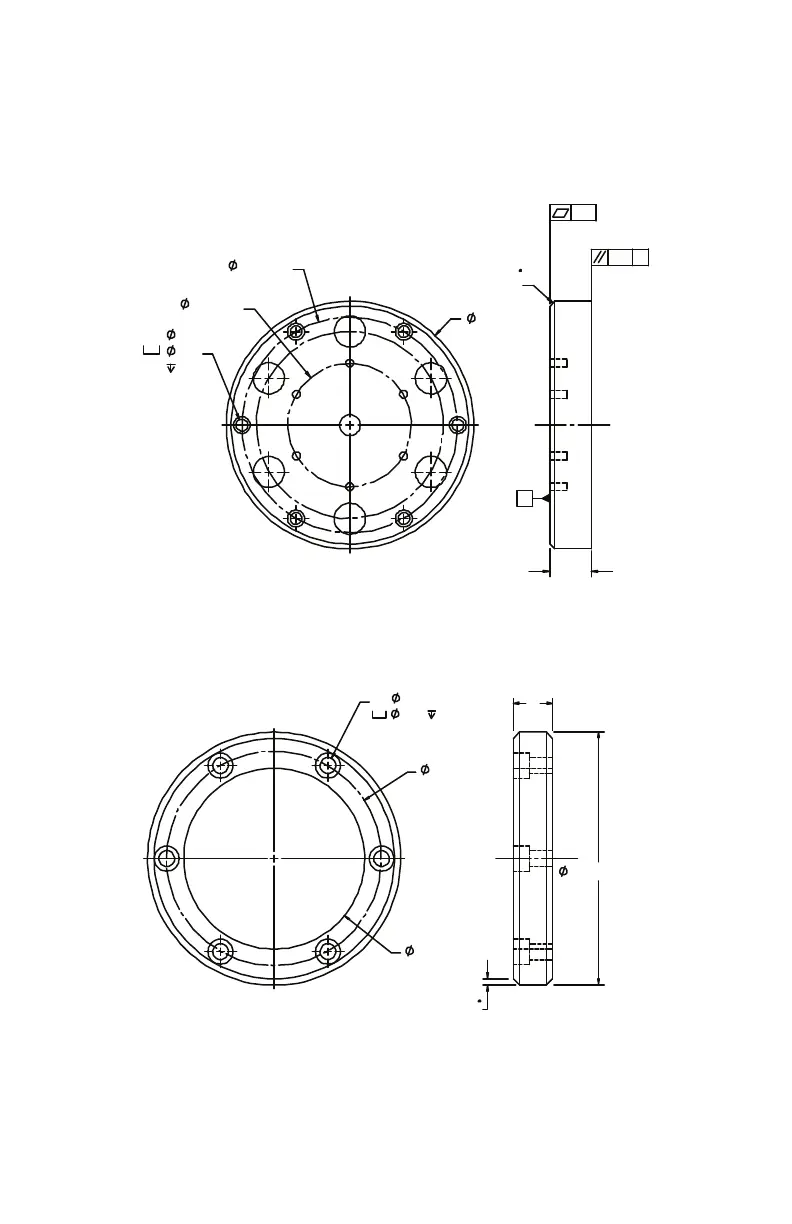

Figure 1-5 Surface Mount Plate dimensions
Figure 1-6 Standard 3½” Mounting Ring dimensions
5.950
BC2.970
.406
.38
BC5.187
6X .281
A
CHAMFER
.12 X 45
.001
.001
A
1.00
EQUALLY SPACED
WITHIN .005
3.500-8 UNC-2A
2X .09 X 45
CHAMFER
.54
2.50
2.970
.344
.22
6X .218
08M46E00_FaroArmUSB.book Page 8 Tuesday, February 17, 2009 1:42 PM
