FaroArm
®
Manual
January 2009
89
Chapter 3: CAM2® Q
Chapter 3: CAM2
®
Q
The DEVICE CONTROL panel contains all the commands for configuring
a measuring device. In CAM2 Q choose Device < Device Control Panel
to show the panel. You can also press the P hot key on the keyboard.
Device Control Panel
The DEVICE CONTROL panel appears when CAM2 Q is launched, and
contains a list of all active (detected) devices. The D
EVICE CONTROL
panel contains a list of all active devices with the properties of each
associated device. You can also press the P hot key on the keyboard.
Choose a FaroArm from the list to see the probe details.
• Click the >> button to hide the list of devices.
• Click the << button to show the list of devices.
Add a Device
From the DEVICE CONTROL panel, click the ADD NEW DEVICE
button. Select an eligible device from the A
DD NEW DEVICE dialog and
click CONNECT.
Change Probe
From the DEVICE CONTROL panel, click the CLICK HERE TO CHANGE
link to show the P
ROBES dialog box. For more information, see
“Probes” on page 77.

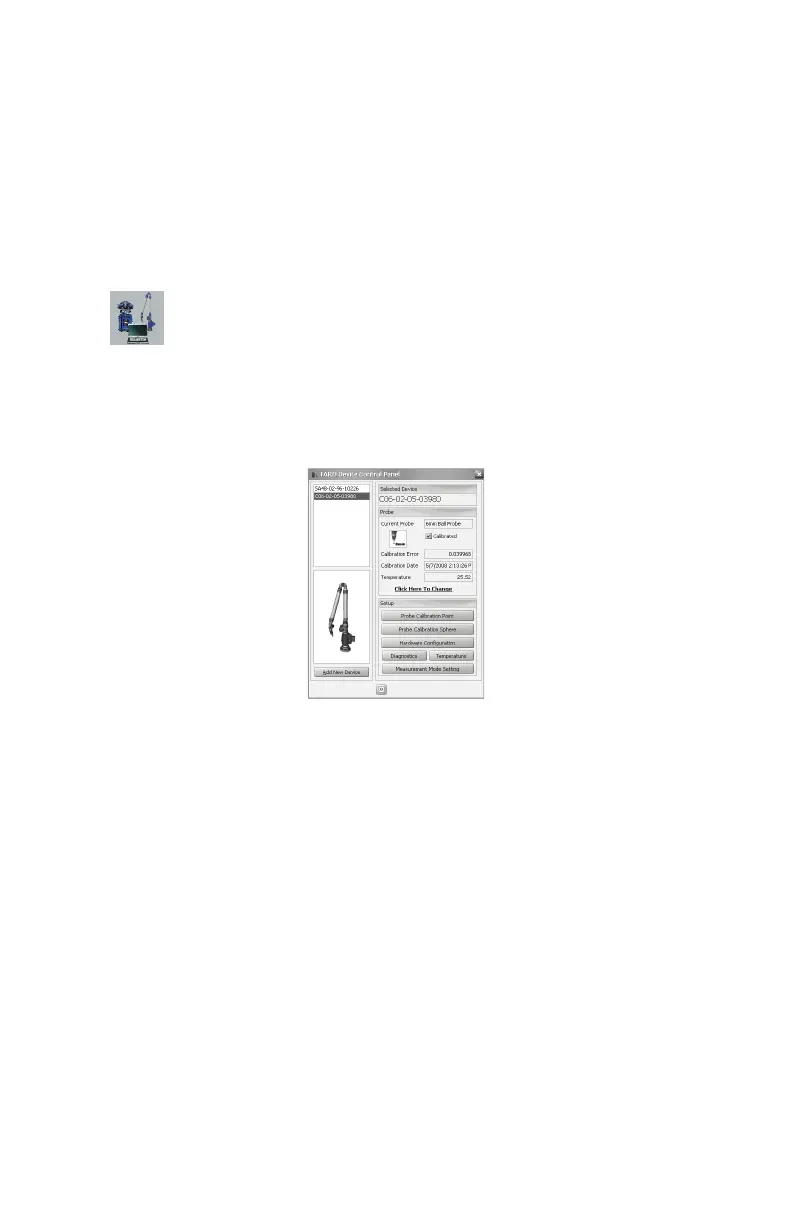

Figure 3-1 Device Control Panel
08M46E00_FaroArmUSB.book Page 89 Tuesday, February 17, 2009 1:42 PM
