FaroArm
®
Manual
January 2009
14
Chapter 1: Introduction to the FaroArm
®
Error and Status Indicators
Through the driver interface to the measuring software, the FaroArm
generates and displays errors in the E
ND STOP/STRESS WARNING dialog
box.
• The encoder end stop warnings - This warning appears when an
encoder reaches one end of its rotation.
• The tube stress stop warnings - This warning appears when there is
stress on one of the tubes or encoder joints. The stress stop warnings
may be disabled. See “Hardware Configuration” on page 76.

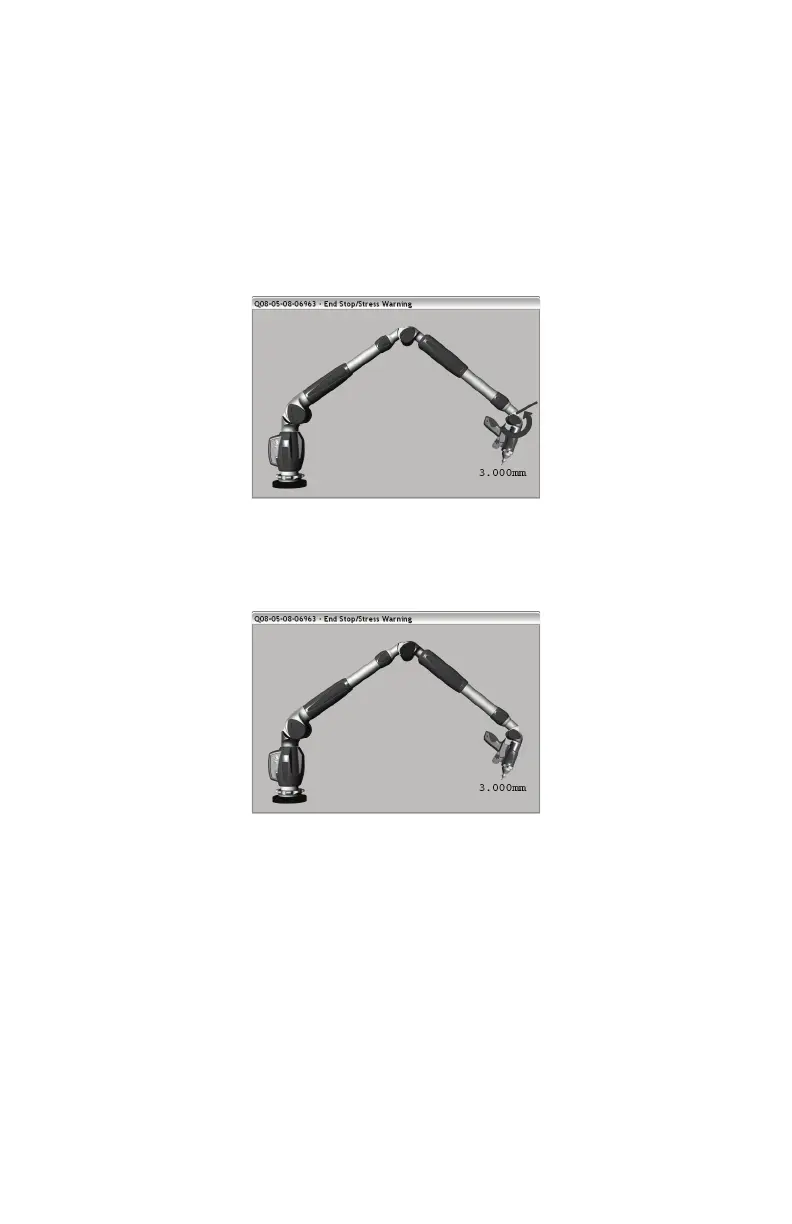

Figure 1-14 FaroArm end stop warning
Figure 1-15 FaroArm stress stop warning
08M46E00_FaroArmUSB.book Page 14 Tuesday, February 17, 2009 1:42 PM
