FaroArm
®
Manual
January 2009
16
Chapter 1: Introduction to the FaroArm
®
Referencing the Encoders
You must reference each of the six (or seven) encoders in the FaroArm
before the system can output data. The R
EFERENCE ENCODERS dialog
box shows all six encoders in error until each is referenced. In a
systematic manner, rotate joints 1 through 6 (7) until each warning
clears.
N
OTE: The FaroArm must be properly connected to the host
computer running the measuring software to see the R
EFERENCE
E
NCODERS dialog box.

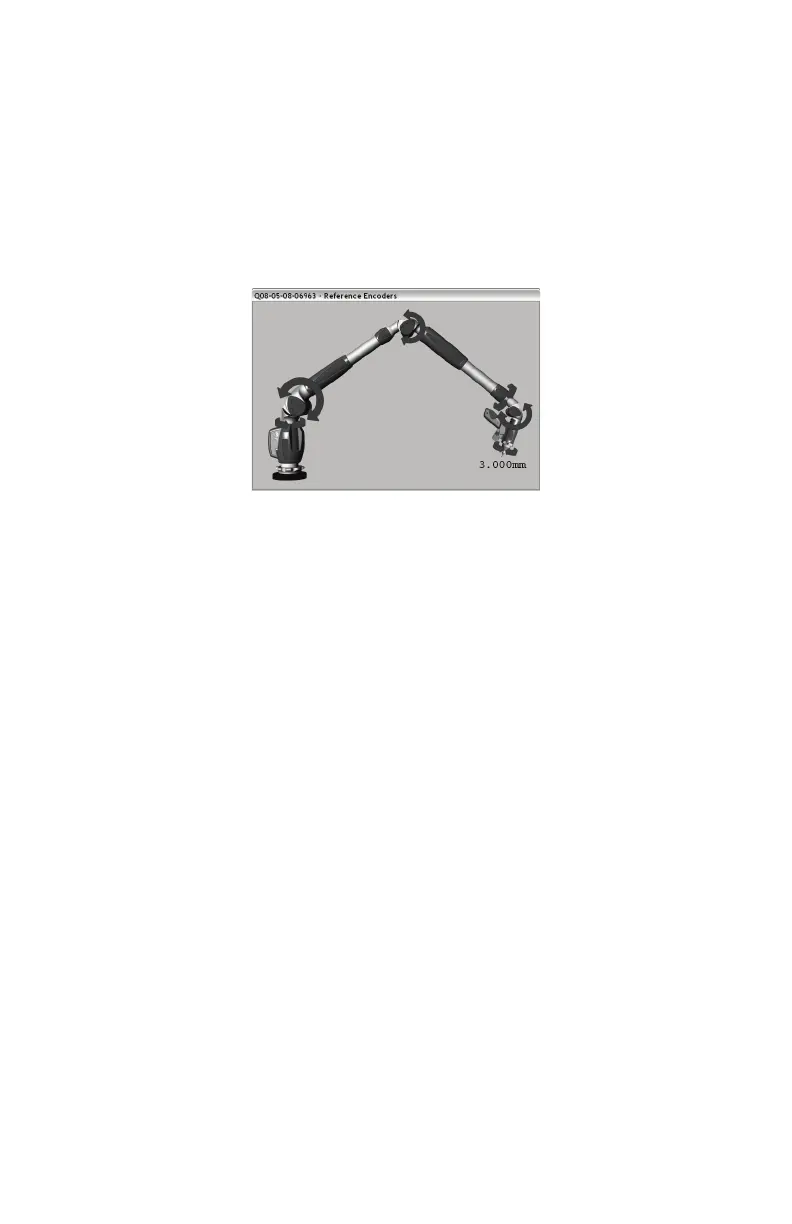

Figure 1-18 Referencing the encoders
08M46E00_FaroArmUSB.book Page 16 Tuesday, February 17, 2009 1:42 PM
