FaroArm
®
Manual
January 2009
87
Chapter 2: CAM2® Measure Devices Menu
View Log

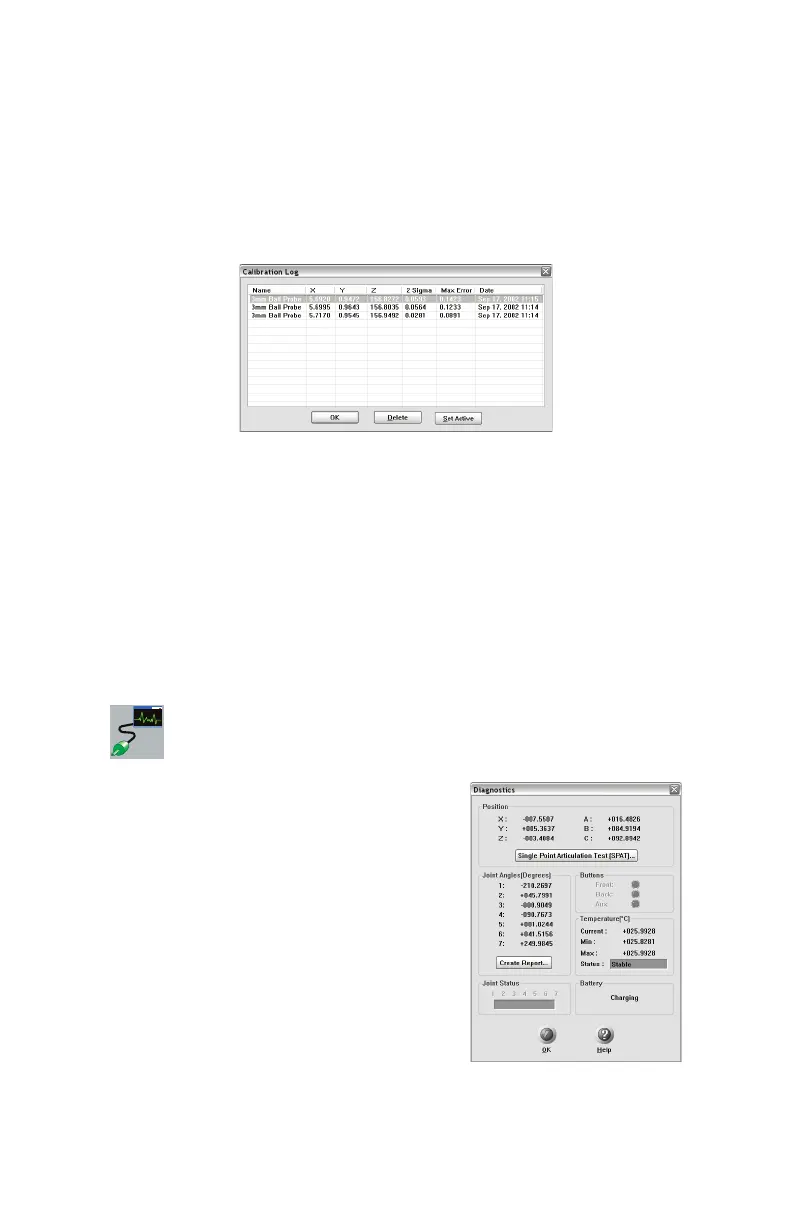

The CALIBRATION LOG dialog box displays the calibration history of the
current probe. You can set to active or delete any previous calibration.
You can also select the calibration values and copy them to the windows
clipboard.
• The X, Y, Z values are the location of the center of the ball probe in
the last joint coordinate system.
• The 2 sigma value is the deviation of all the points taken during the
calibration.
• The Max. Error column displays the displacement of the point with
the largest displacement. In order to pass calibration, this value has to
be less than the single point accuracy specification of the arm. See
“FaroArm Performance” on page 48.
Diagnostics
Select DEVICES < DIAGNOSTICS from
the DEVICES menu. The D
IAGNOSTICS
dialog box displays:
• X, Y, Z Machine Coordinates.
• Encoder angles for each joint of the
FaroArm.
• FRONT and BACK button, and Auxiliary
Port operations.
• The Temperature of the FaroArm’s
internal sensor.
Figure 2-9 Calibration Log Dialog Box
