Chapter 2: CAM2® Measure Devices Menu
The digitized calibration points then
calculate and the C
ALIBRATION STATUS
updates. If the probe passes, the current
date and time is added to the probe
information.
You can view the details for all of the
calibrations of a probe by clicking the
View Log button. See “View Log” on
page 87.

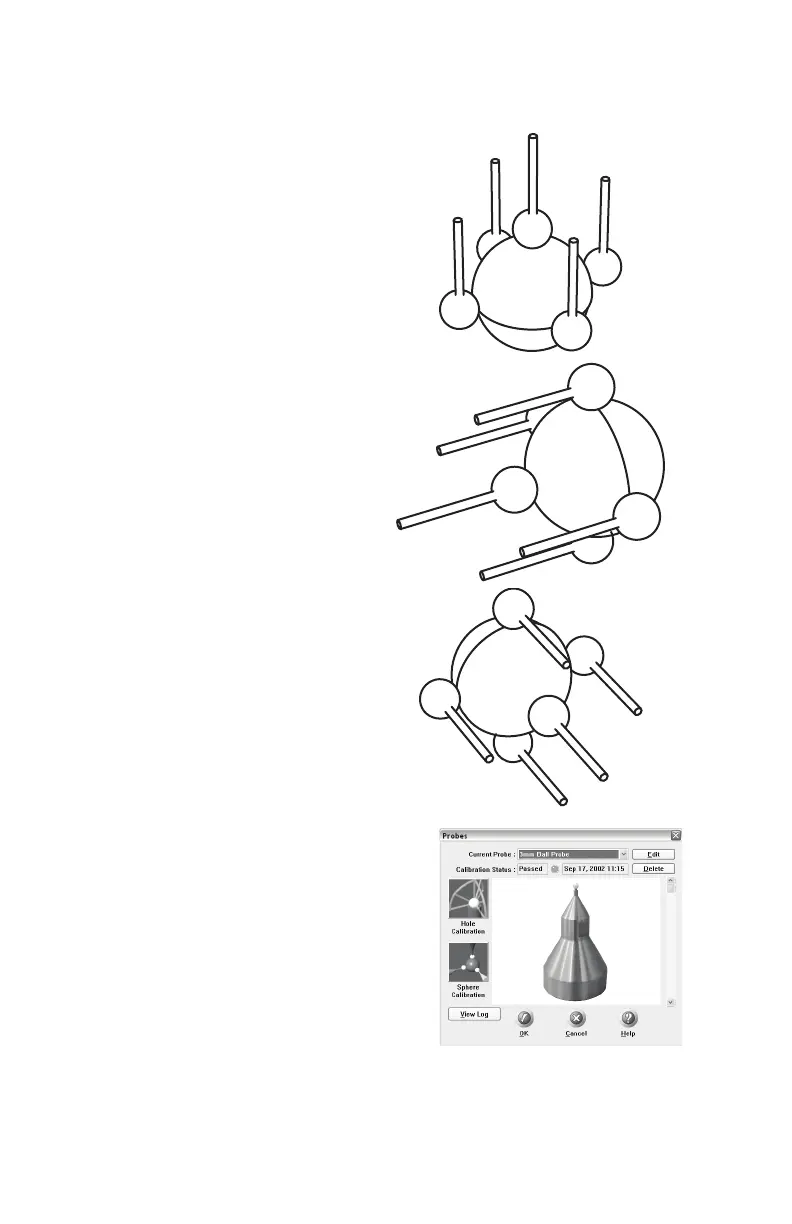

• Digitize five points around the
top of the sphere with the probe
pointing in position #1.
• Digitize five points around the
front of the sphere with the
probe pointing in position #2.
• Digitize five points around the
side of the sphere with the
probe pointing in position #3.
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
