Chapter 1: Introduction to the FaroArm
®
Custom Probes

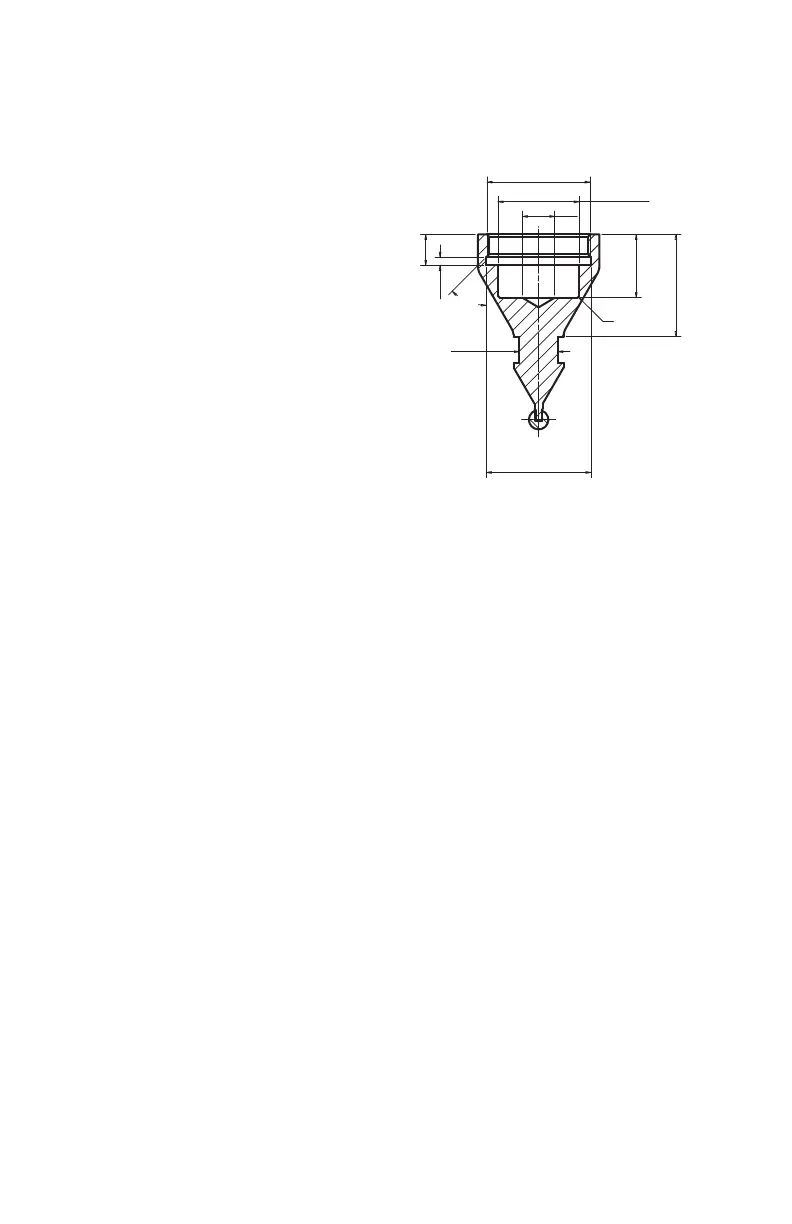

You can create any size probe to
attach to the FaroArm.
• The FaroArm Probe thread size
is 1¼-20.
• The base of the probe should
follow the shape of the FARO
probes.
Your custom probe should be as
rigid as possible. Any deflection in
the probe will add inaccuracy to the
FaroArm system.
N
OTE: FARO Technologies Inc.
does not guarantee the accuracy
of the FaroArm with the use of a custom probe.
1¼-20 THD
11.85
R 0.5
19.5
ø
ø10
MAX
25.1
24.9
ø
32.4
32.2
62˚
28˚
31.6
31.4
9.6
9.4
2.6
2.4
