FaroArm
®
Manual
January 2009
17
Chapter 1: Introduction to the FaroArm
®
FaroArm Handle Buttons
The FaroArm has two sets of two buttons and an LED, where the
FRONT buttons and BACK buttons are redundant and wired together
internally. When a button is pressed, the LED light turns on (green or
red) and the Computer sounds. See “Handle LED” on page 13.
The FRONT button is used to collect data, and the BACK button to
accept the data.
• The FRONT button is green and nearest the probe.
• The BACK button is red and is nearest the handle.

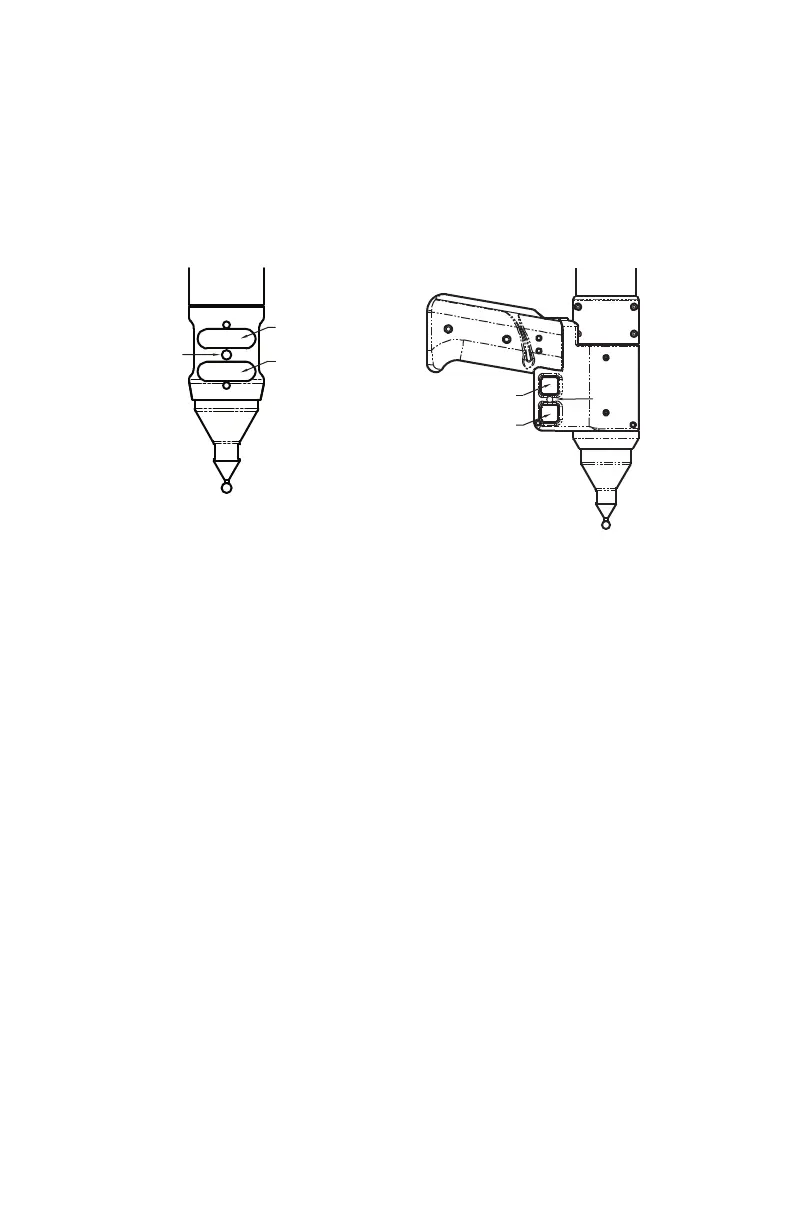

Figure 1-19 FaroArm Handle Buttons
LED
BACK BUTTON
FRONT BUTTON
BACK BUTTON
FRONT BUTTON
LED
08M46E00_FaroArmUSB.book Page 17 Tuesday, February 17, 2009 1:42 PM
