Chapter 1: Introduction to the FaroArm
®
4 Use the 12mm wrench to tighten the threaded collar clamp.
For more information see “Mounting Stiffness Test” on page 52 and
“FaroArm/ScanArm Performance Verification Checklist” on page 66.
Surface Mount Plate Dimensions
The Surface Mount Plate is used to clamp or bolt the FaroArm to a
stable mounting surface. It is an assembly of a standard 3½” mounting
ring and a FARO designed base plate.

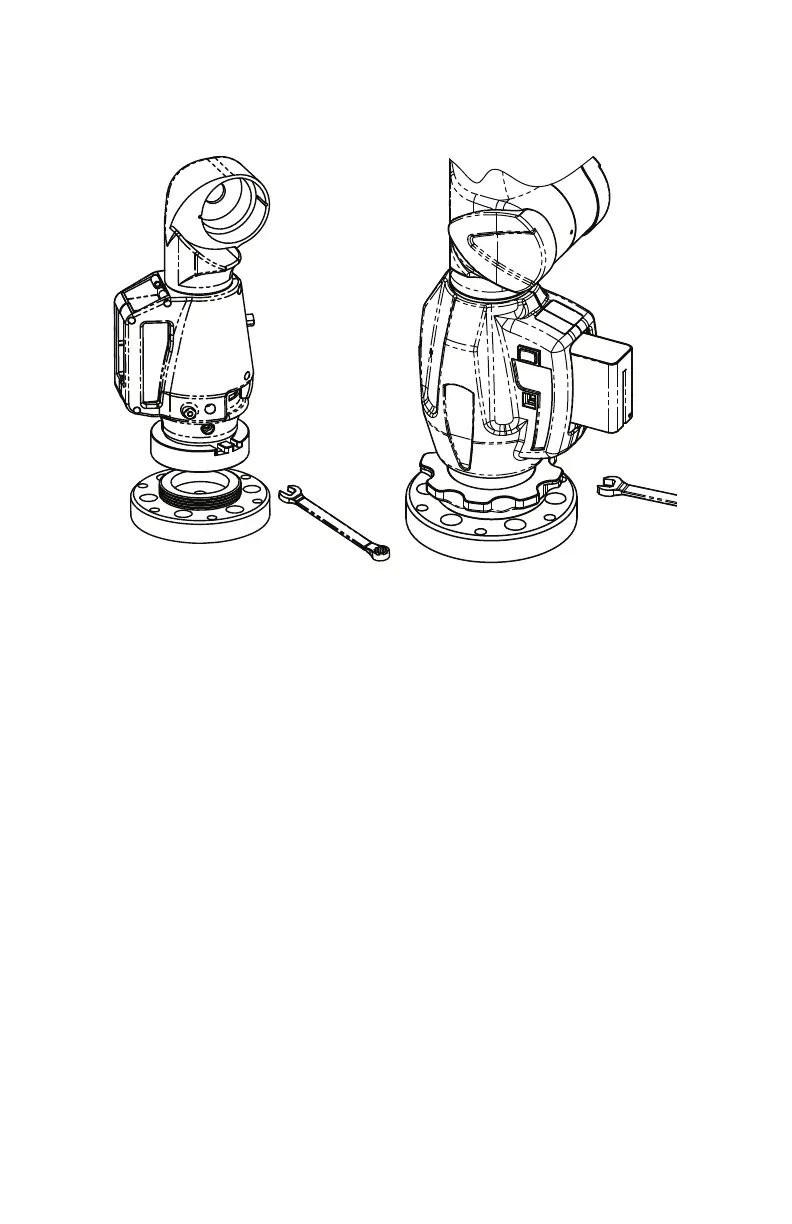

Figure 1-3 Mounting the Platinum/Fusion
Series FaroArm
Figure 1-4 Mounting the Quantum Series
FaroArm
