FaroArm
®
Manual
January 2009
84
Chapter 2: CAM2® Measure Devices Menu
NOTE: Seven-axis FaroArms have an additional position. Rotate the
handle.
CAUTION: The probe must be well-seated in the hole when
digitizing all calibration points. Even one or two poorly digitized
• Digitize points in the hole and sweep to
position #1.
• Digitize points in the hole and sweep to
position #2.
• Digitize points in the hole and sweep to
position #3.

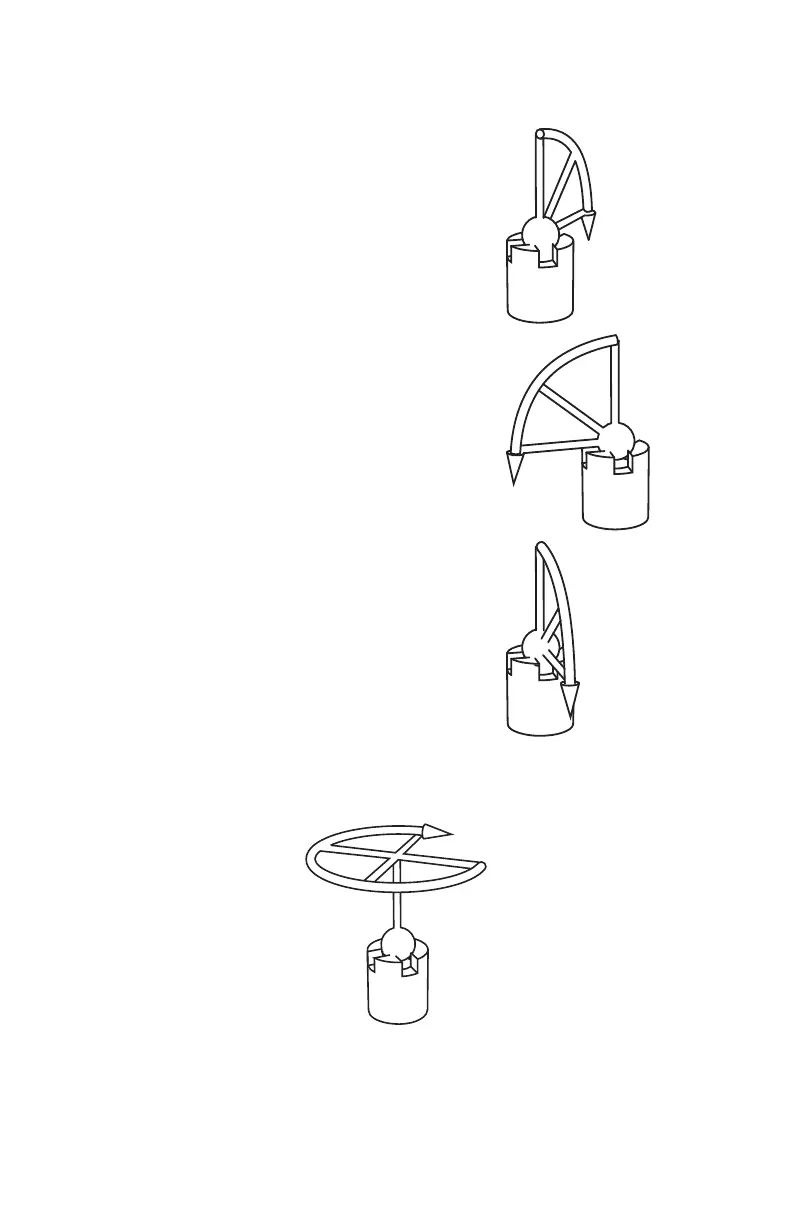

Figure 2-7 Single Hole Method - Guidance
Figure 2-8 Additional Position for Seven-axis FaroArms
08M46E00_FaroArmUSB.book Page 84 Tuesday, February 17, 2009 1:42 PM
