FENDT 926 Vario User Manual

165
CARE AND MAINTENANCE
21.2 Fuse holder X051
Operation_Pic_number:1
Text-module
Fuse no. PIN Amps
(A)
Consumers
31 58 25 Rear socket 20 amps
32 58 5 Instrument panel
33 58 25 Front work lamps switch
34 58 40 Front work lamps switch
35 58 25 Rear work lamps switch
36 58 25 Rear work lamps switch
37 58 5 Rear right tail light, right marker light
38 58 5 Rear left tail light, left marker light
39 30E 10 Terminal, communications box power supply
40 30E 5 Instrument panel
41 30E 40 E-box comfort
42 30E 10 Operating console
43 30E 15 Actuator control
44 15 E 5 Operating console
45 15 E 5 E-box comfort
46 15 E 5 Vario Terminal
47 15 E 5 Joystick
48 15 E 15 EHR, OBE
49 15 E 5 Instrument panel
50 15/58 15 Valve heating
51 15/58 5 Implement socket, communications box power supply
52 54 10 Trailer socket
53 R 10 Front socket for front power lift, trailer socket
54 15 E 5 Test connection
55 58L 10 Front socket for front power lift, trailer socket
56 L 10 Front socket for front power lift, trailer socket
57 58R 10 Trailer socket
58 30 15 Engine control
59 - - -

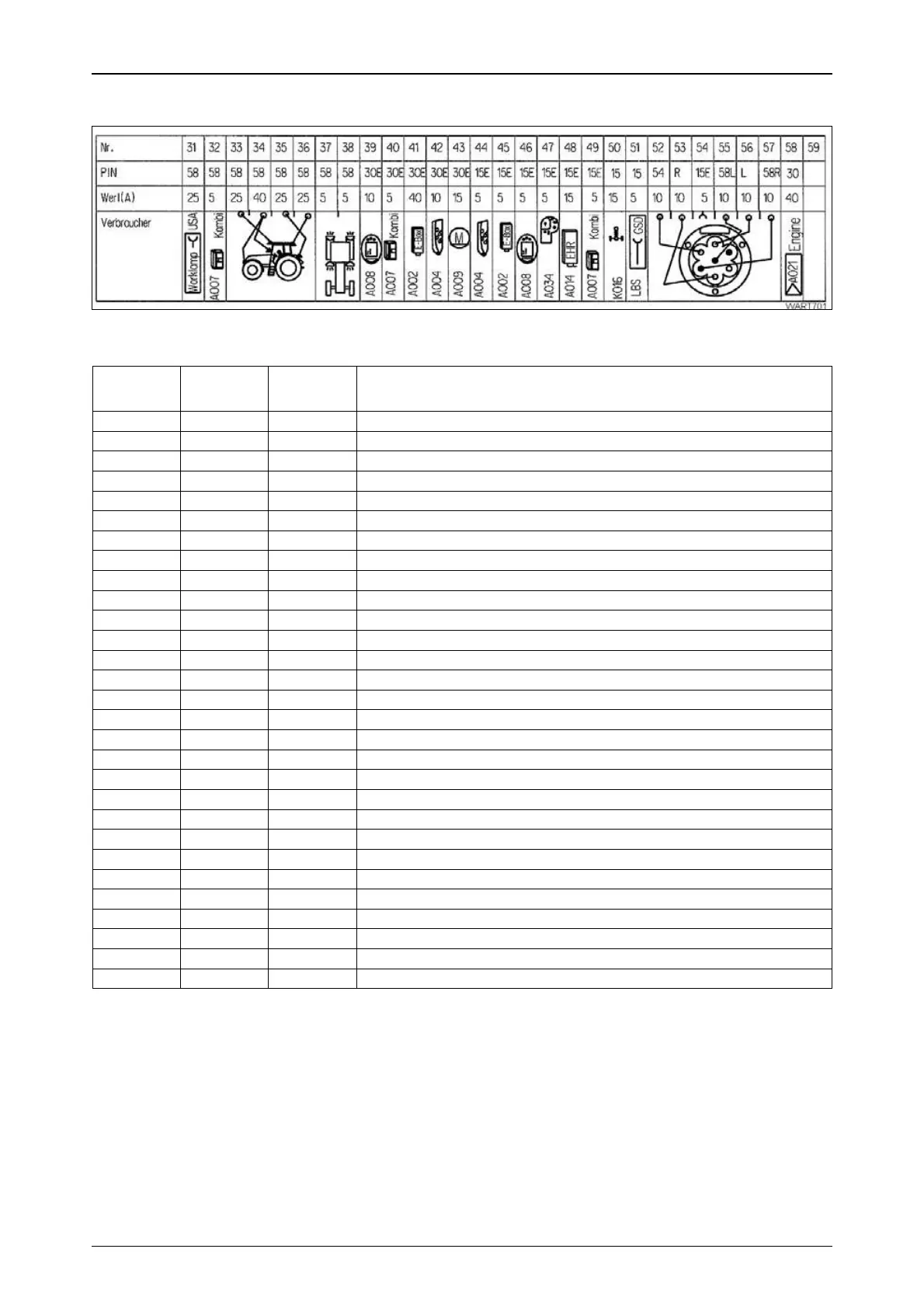

Fig.72

FENDT 926 Vario Specifications

General

Engine Power	260 hp
Transmission	Vario continuously variable transmission
Fuel Tank Capacity	500 liters
Weight	10, 500 kg
Engine type	6-cylinder turbocharged
Rated engine speed	2100 rpm
Displacement	7.5 liters
Number of cylinders	6
Maximum speed	50 km/h
Tire Options	Multiple options available
