OPERATION

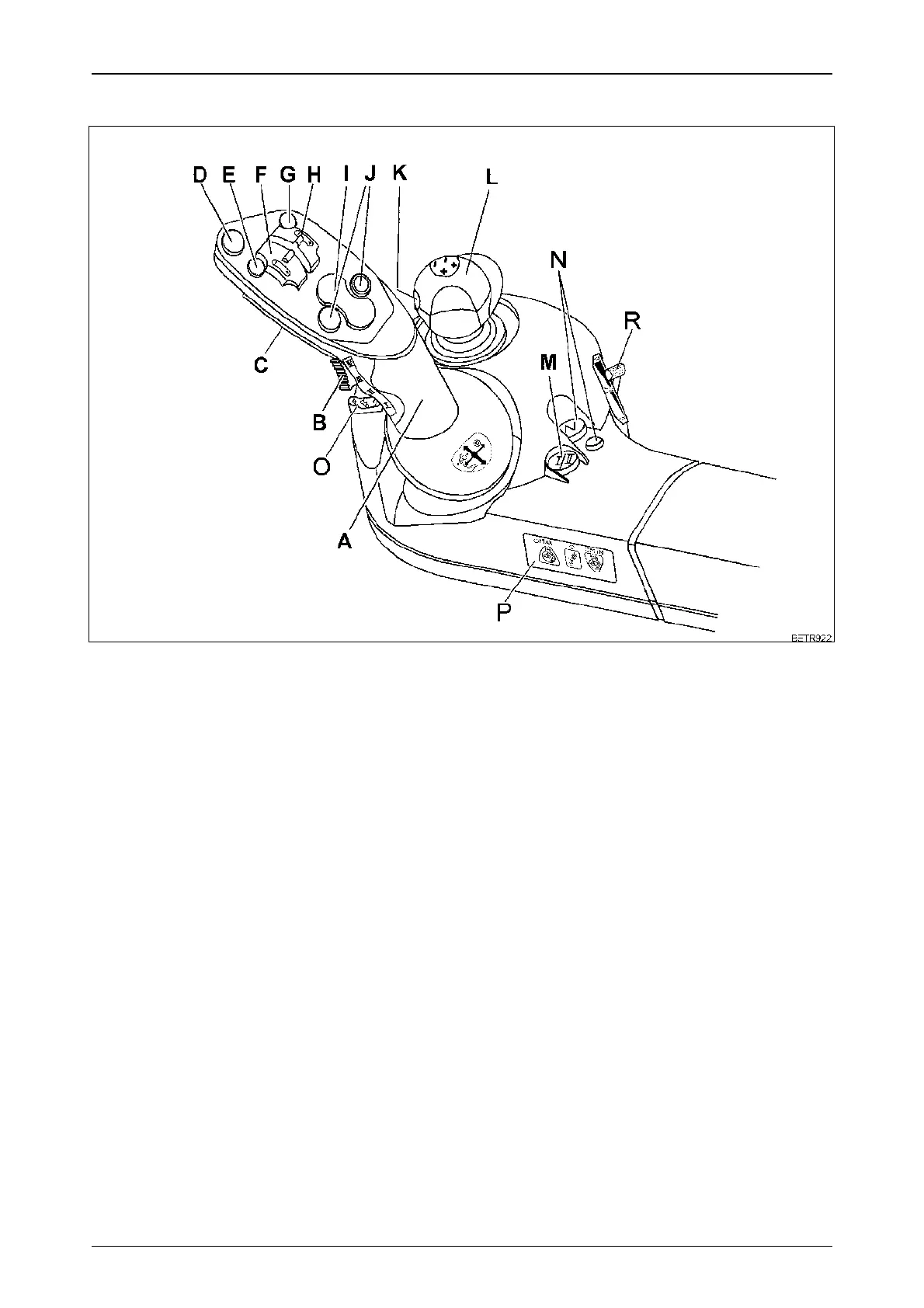

2.11 Multi-function armrest
Operation_Pic_number:1
Text-module
A = Joystick (see also OPERATION Section 7.1).
B = Acceleration rate selection (see also OPERATION Section 7.3).
C = Activating button on the back of the joystick.
D = EPC PTO automatic mode stop button (see also OPERATION Section 14.2).
E = Floating position of hydraulic valve, green or blue (see also OPERATION Section 17.3).
F = Lifting/lowering hydraulic valve, green or blue (see also OPERATION Section 17.3).
G = Floating position of hydraulic valve red or yellow (see also OPERATION Section 17.3).
H = Lifting/lowering of hydraulic valve red or yellow (see also OPERATION Section 17.3).
I = Rear power lift/ PTO automatic mode (see also OPERATION Section 14.2).
J = Front power lift/ PTO automatic mode (see also OPERATION Section 14.2).
K = 3rd hydraulic circuit on front loader.
L = Crossgate lever, lifting/lowering and floating position of hydraulic valves, yellow/blue or red/
green (see also OPERATION Section 17.3).
M = Driving mode selector (see also OPERATION Section 7.4).
N = Neutral button with neutral selected LED (see also OPERATION Section 7.2).
O = Accelerator pedal function (see also OPERATION Section 9.2).
P = Electronic engine control (also refer to OPERATION Section 9).
R = Accelerator pedal release (see also OPERATION Section 9.2).
Fig.12
