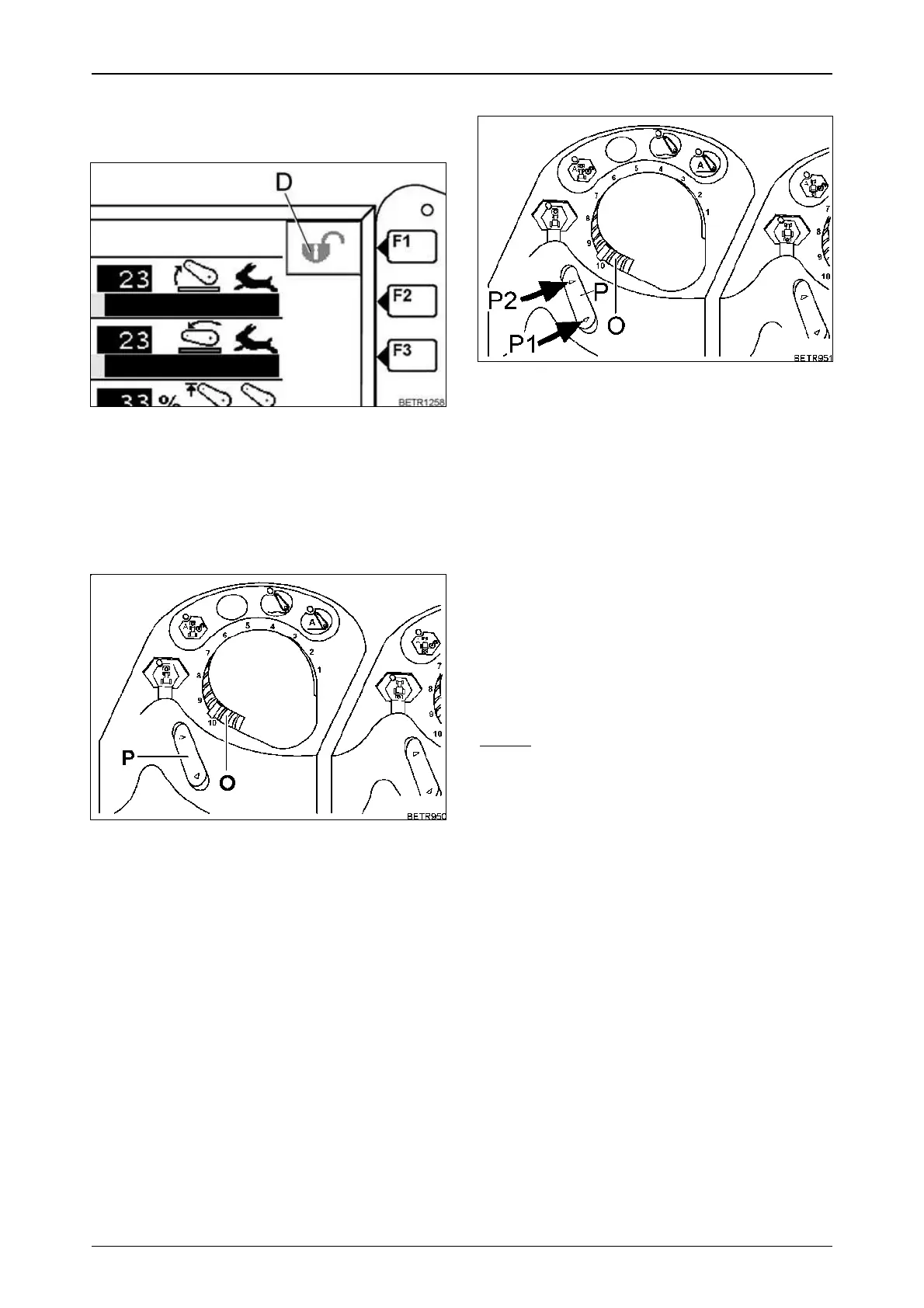

OPERATION
Unlocking the front power lift
There are two ways of unlocking the front power
lift.
Operation_Pic_number:1
1. With the Vario Terminal.
● By pressing key (F1) the lock can be switched
OFF/ON.
Symbol (D) appears.
Operation_Pic_number:1
2. Using Quick Lift switch.
● Switch quick lift key (P) once upwards.
As soon as the power lift is unlocked, it moves to
the position selected with the depth control (O).
Fig.203
Fig.204
Quick Lift key
Operation_Pic_number:1
Text-module
STOP = Switch (P) in centre position.
LED lights up if the EPC, lift or con-
trol are active.
Press switch (P) again in the active
direction of actuation - the LED goes
out.
or at speeds under 0.5 km/h.
Press switch (P) once in the non-ac-
tive direction of actuation - the LED
goes out.
Raise = Switch position (P2) LED is lit.
The working implement is adjusted
to the height control value set.
Control = Control position (P1) LED lights up.
Implement is set at the value selec-
ted with the depth control (G).
Text-module
NOTE:
In the 'STOP' position, all lifting and lowering
movements are stopped at the current positi-
ons, except if operated with external front
controls. Electronics do not function (no ad-
justment facility).
Fig.205
